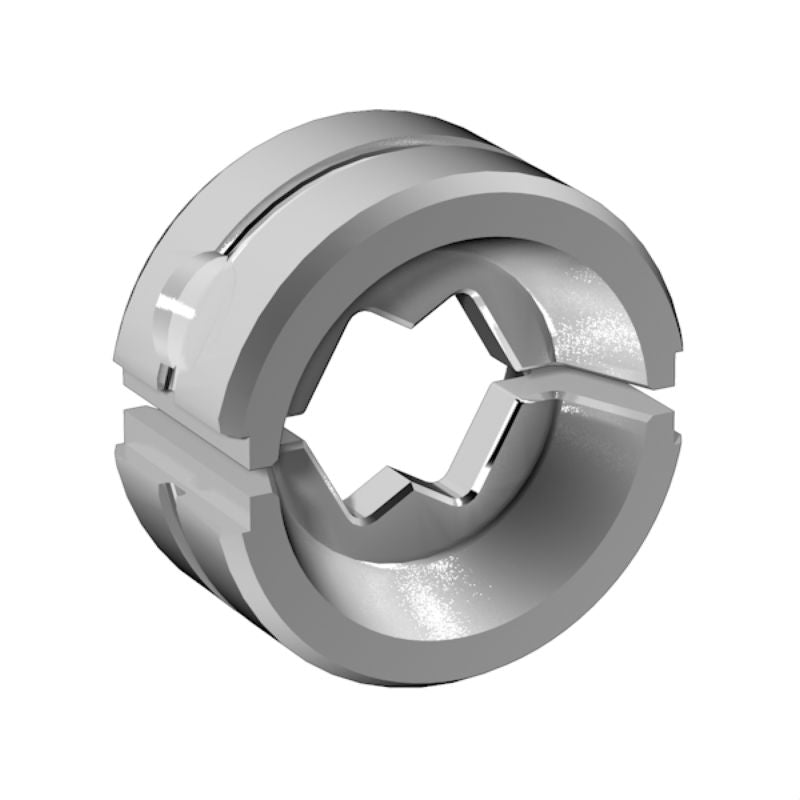

2469600000 - 95mm² Crimping Tool Insert, WM Profile, 22mm Depth

2469600000 - 95mm² Crimping Tool Insert, WM Profile, 22mm Depth

SKU: SKU: 2469600000 Download PDF

Variant:
  • 2469600000 - 95mm² Crimping Tool Insert, WM Profile, 22mm Depth
Regular price Now $195.80
Regular price BEFORE   $0.00 Sale price Now $195.80
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your crimping capabilities with this specialized insert, tailored for 95mm² cables and featuring a WM crimp profile Identified by the order number 2469600000 and GTIN 4050118483895, this tool insert boasts dimensions of 22 mm in depth, 42 mm in height, and 42 mm in width Weighing in at 1188 grams, it combines precision and efficiency for all your crimping needs.

Features and Benefits:

    •RoHS compliant without exemption.

    •No SVHC above 0.1 wt%.

    •Max crimping range of 95 mm².

    •Type of contact is Euro series cable lug.

Specifications:

 Depth 22 mm
 Height 42 mm
 Width 42 mm
 Crimp cross-section copper 95
 Crimping width 5 mm
 Conductor cross-section, max. AWG 3/0
 Conductor cross-section, min. AWG 3/0
 Crimping type/profile WM crimp
 ETIM 6.0 EC001282
 ETIM 7.0 EC001282
 ETIM 8.0 EC001282
 ETIM 9.0 EC001282
 ETIM 10.0 EC001282
 ECLASS 9.0 21-04-90-90
 ECLASS 9.1 21-01-90-90
 ECLASS 10.0 21-04-90-90
 ECLASS 11.0 21-04-90-90
 ECLASS 12.0 21-04-90-90
 ECLASS 13.0 21-04-90-90
 ECLASS 14.0 21-04-90-90
 ECLASS 15.0 21-04-90-90
