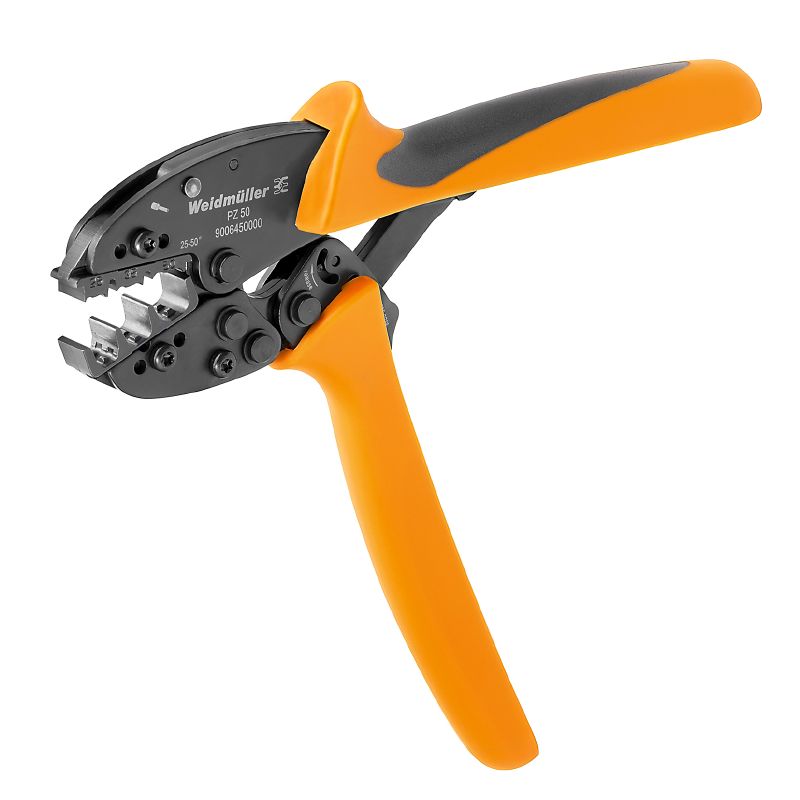

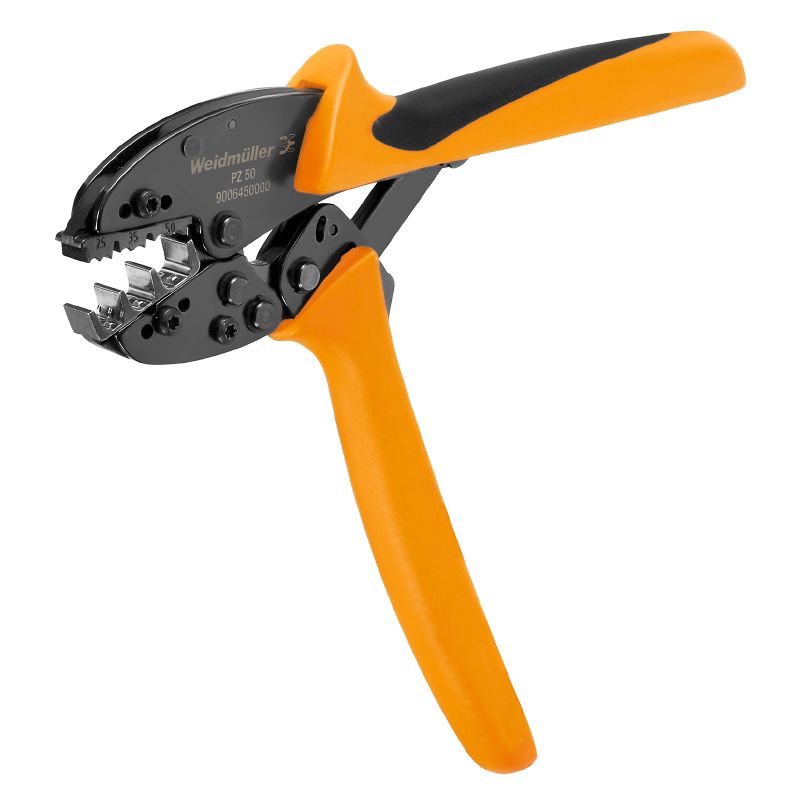

9006450000 - Mechanized PZ 50 Crimping Tool for AWG 4-0

9006450000 - Mechanized PZ 50 Crimping Tool for AWG 4-0

SKU: SKU: 9006450000 Download PDF

Variant:
  • 9006450000 - Mechanized PZ 50 Crimping Tool for AWG 4-0
Regular price Now $324.94
Regular price BEFORE   $0.00 Sale price Now $324.94
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PZ 50 crimping tool, engineered for effortlessly connecting wire-end ferrules through a mechanized operation This versatile tool accommodates conductor cross-sections from AWG 4 to AWG 0 and handles crimping sizes between 25mm² and 50mm² Featuring an indent crimp design, it offers reliability and efficiency for your wiring needs.

Features and Benefits:

    •Mechanical operation without interchangeable inserts.

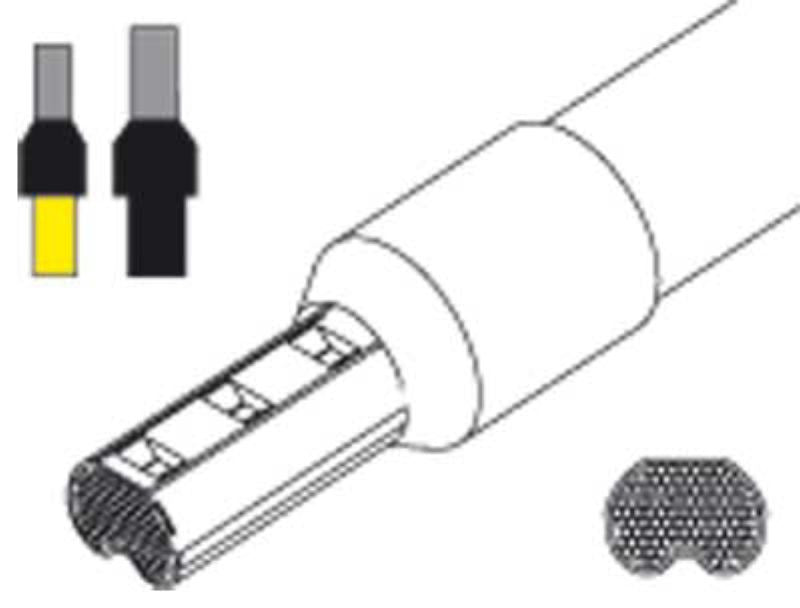

    •Can crimp wire-end ferrules with or without plastic collars.

Specifications:

 Width 250 mm
 Width (inches) 9.842 inch
 Crimping range, max. 50 mm²
 Crimping range, min. 25 mm²
 Conductor cross-section, max. AWG AWG 0
 Conductor cross-section, min. AWG AWG 4
 Crimping type/profile Indent crimp
 Drive mechanical
 Wire end ferrules cross-section, max. 50 mm²
 Wire end ferrules cross-section, min. 25 mm²
 RoHS Compliance Status Not affected
 REACH SVHC Lead 7439-92-1
 SCIP 2159813b-98fd-4068-b62a-bc89a046c012
 ETIM 6.0 EC000168
 ETIM 7.0 EC000168
 ETIM 8.0 EC000168
 ETIM 9.0 EC000168
 ETIM 10.0 EC000168
 ECLASS 9.0 21-04-38-11
 ECLASS 9.1 21-04-38-11
 ECLASS 10.0 21-04-38-11
 ECLASS 11.0 21-04-38-11
 ECLASS 12.0 21-04-38-11
 ECLASS 13.0 21-04-38-11
 ECLASS 14.0 21-04-38-11
 ECLASS 15.0 21-04-38-11
