Description:

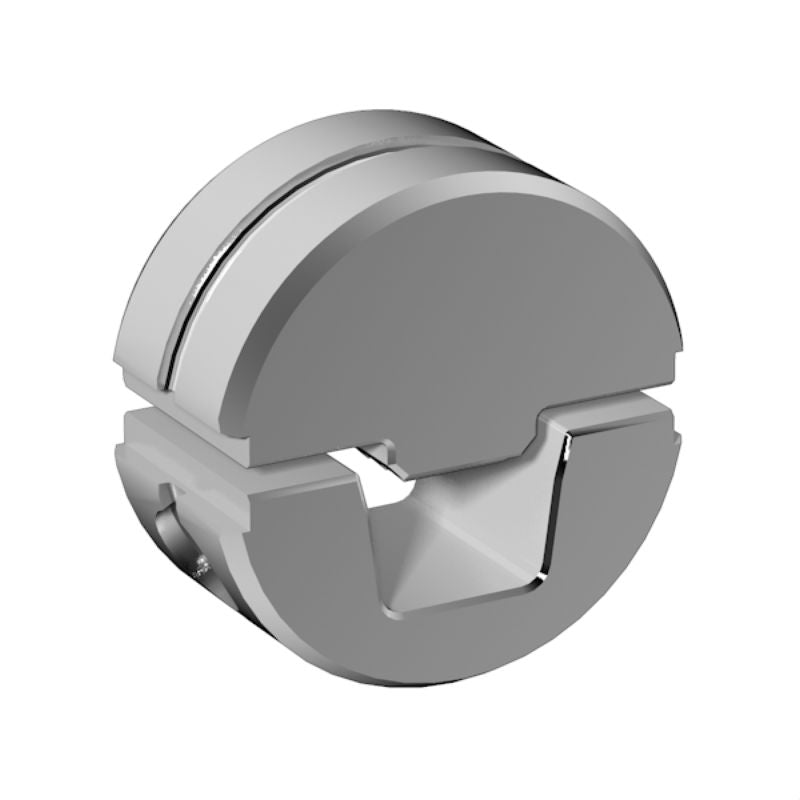

Introducing a premium crimping tool insert, specifically crafted for conductors with a cross-section of 50 mm² and featuring a trapezoidal crimp design This compact tool measures 22 mm in depth, 42 mm in height, and 42 mm in width, making it lightweight at just 25 grams It adheres to RoHS regulations without any exceptions and contains no SVHC substances above 01 wt% With a versatility that accommodates a maximum and minimum conductor cross-section of 1 AWG, it's ideal for a wide range of applications.
Features and Benefits:
•Compact size for easy handling.
•Designed for high-quality trapezoidal crimping.
•Complies with RoHS regulations.
•Lightweight construction for portability.
Specifications:
| Depth: | 22 mm |
| Height: | 42 mm |
| Width: | 42 mm |
| Net weight: | 25 g |
| Crimp cross-section copper: | 50 |
| Crimping width: | 22 mm |
| Conductor cross-section, max. AWG: | 1 |
| Conductor cross-section, min. AWG: | 1 |
| Crimping range, max: | 50 mm² |
| Type of contact: | Wire-end ferrules with/without plastic collars |
| Crimping type/profile: | Trapezoidal crimp |
| RoHS Compliance Status: | Compliant without exemption |
| REACH SVHC: | No SVHC above 0.1 wt% |
| ETIM 6.0: | EC001282 |
| ETIM 7.0: | EC001282 |
| ETIM 8.0: | EC001282 |
| ETIM 9.0: | EC001282 |
| ETIM 10.0: | EC001282 |
| ECLASS 9.0: | 21-04-90-90 |
| ECLASS 9.1: | 21-01-90-90 |
| ECLASS 10.0: | 21-04-90-90 |
| ECLASS 11.0: | 21-04-90-90 |
| ECLASS 12.0: | 21-04-90-90 |
| ECLASS 13.0: | 21-04-90-90 |
| ECLASS 14.0: | 21-04-90-90 |
| ECLASS 15.0: | 21-04-90-90 |
