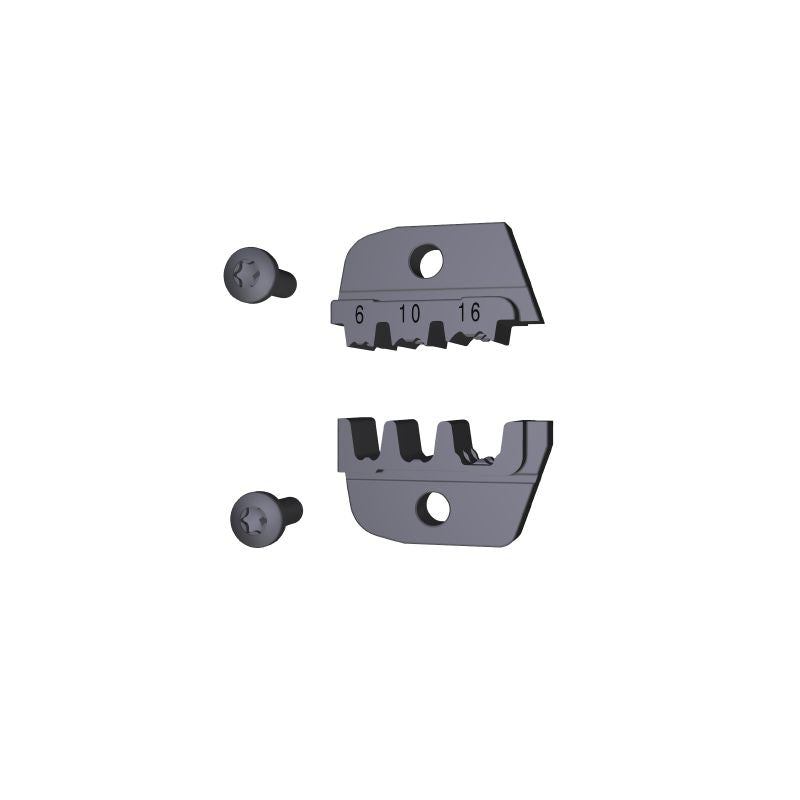

9012640000 - Indent Crimp 16mm² Connector, 12mm Depth, 34mm Height

9012640000 - Indent Crimp 16mm² Connector, 12mm Depth, 34mm Height

SKU: SKU: 9012640000   Download PDF

Select a Variant:
  • 9012640000 - Indent Crimp 16mm² Connector, 12mm Depth, 34mm Height
Qty:
Regular price Now $104.37   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $104.37 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the EINSATZPAAR PZ 16E, engineered with an indent crimp design suited for conductor cross-sections of up to 16 mm² This component accommodates wire sizes with a minimum gauge of 10 AWG and a maximum gauge of 6 AWG The product's dimensions are as follows: it has a depth of 12 mm (0472 inches), a height of 34 mm (1339 inches), and a width of 28 mm (1102 inches) Weighing in at just 396 grams, it's a lightweight yet robust option for your electrical connections.

Features and Benefits:

    •Indent crimp design.

    •Suitable for a maximum cable cross-section of 16 mm².

    •Net weight of 39.6 g.

    •RoHS compliant.

Specifications:

 Conductor cross-section, max. AWG 6
 Conductor cross-section, min. AWG 10
 Crimping range, max. 16 mm²
 Crimping type/profile Indent crimp
 Depth 12 mm
 Height 34 mm
 Width 28 mm
 Depth (inches) 0.472 inch
 Height (inches) 1.339 inch
 Width (inches) 1.102 inch
 Net weight 39.6 g
 RoHS Compliance Status Not affected
 REACH SVHC No SVHC above 0.1 wt%
 ETIM 6.0 EC001282
 ETIM 7.0 EC001282
 ETIM 8.0 EC001282
 ETIM 9.0 EC001282
 ETIM 10.0 EC001282
 ECLASS 9.0 21-04-90-90
 ECLASS 9.1 21-01-90-90
 ECLASS 10.0 21-04-90-90
 ECLASS 11.0 21-04-90-90
 ECLASS 12.0 21-04-90-90
 ECLASS 13.0 21-04-90-90
 ECLASS 14.0 21-04-90-90
 ECLASS 15.0 21-04-90-90
