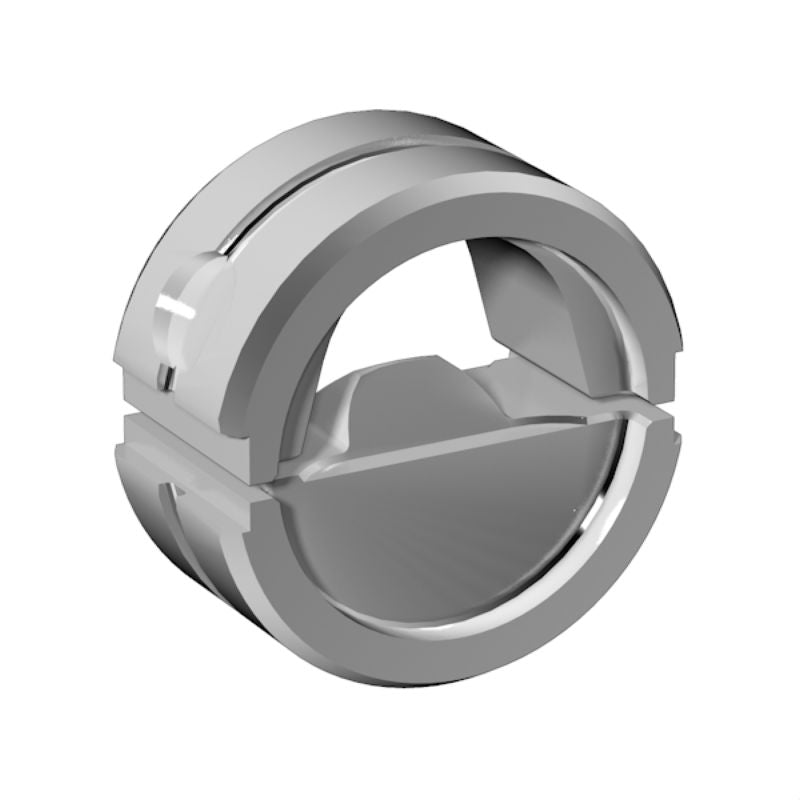

2505320000 - 35mm² Crimping Tool Insert for DIN Connectors

2505320000 - 35mm² Crimping Tool Insert for DIN Connectors

SKU: SKU: 2505320000 Download PDF

Variant:
  • 2505320000 - 35mm² Crimping Tool Insert for DIN Connectors
Regular price Now $285.99
Regular price BEFORE   $0.00 Sale price Now $285.99
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the ES EPG 60/HPG DIN 35 crimping tool insert, specifically engineered for indent crimping with a capacity of up to 35mm² cross-section This insert is RoHS compliant, ensuring it contains no SVHC exceeding 01 wt% Compatible with an array of cable lug types, including DIN 46234, DIN 46341 Part 1, and DIN 46230, it’s an essential tool for various electrical applications.

Features and Benefits:

    •Compliant with RoHS.

    •No SVHC above 0.1 wt%.

    •Supports crimping width of 10 mm.

    •Compatible with multiple DIN cable lug types.

Specifications:

 Crimp cross-section copper 35
 Crimping range, max. 35 mm²
 Conductor cross-section, max. AWG 2
 Conductor cross-section, min. AWG 2
 Crimping type/profile Indent crimp
 Depth 22 mm
 Height 42 mm
 Width 42 mm
 Depth (inches) 0.866 inch
 Height (inches) 1.654 inch
 Width (inches) 1.654 inch
 Net weight 128.48 g
 ETIM 6.0 EC001282
 ETIM 7.0 EC001282
 ETIM 8.0 EC001282
 ETIM 9.0 EC001282
 ETIM 10.0 EC001282
 ECLASS 9.0 21-04-90-90
 ECLASS 9.1 21-01-90-90
 ECLASS 10.0 21-04-90-90
 ECLASS 11.0 21-04-90-90
 ECLASS 12.0 21-04-90-90
 ECLASS 13.0 21-04-90-90
 ECLASS 14.0 21-04-90-90
 ECLASS 15.0 21-04-90-90
