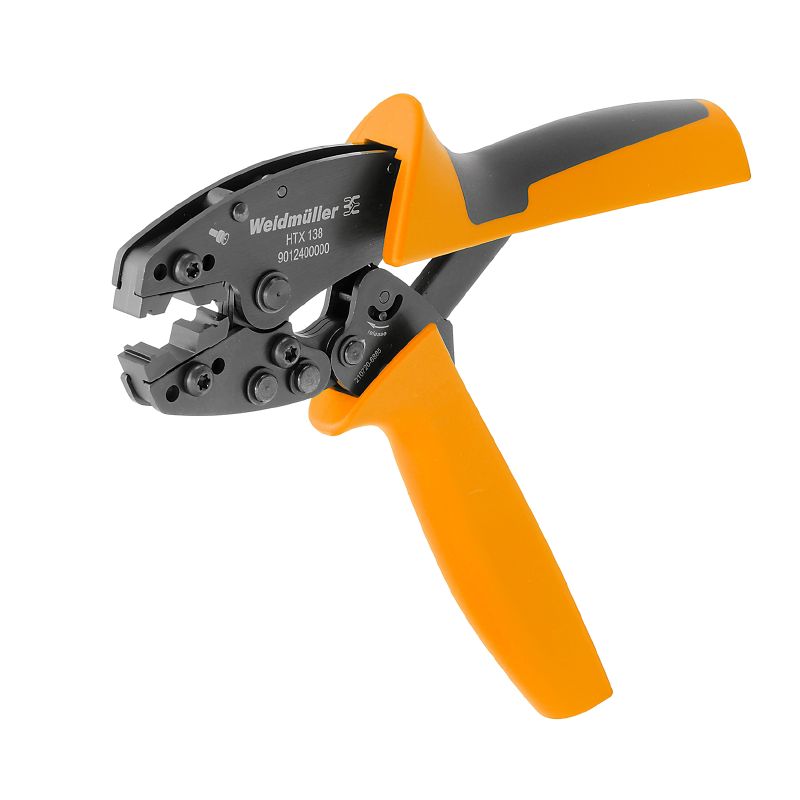

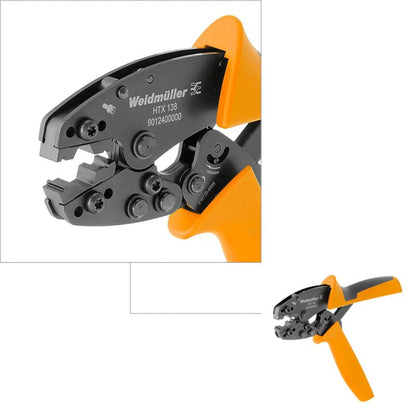

9012400000 - Precision Crimping Tool for Twinax Cables, 10mm Width

9012400000 - Precision Crimping Tool for Twinax Cables, 10mm Width

SKU: SKU: 9012400000   Download PDF

Select a Variant:
  • 9012400000 - Precision Crimping Tool for Twinax Cables, 10mm Width
Qty:
Regular price Now $381.31   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $381.31 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the HTX 138, a specialized crimping tool tailored for Twinax coaxial cables This durable mechanical device is engineered to make strong, dependable connections for coaxial connectors without the need for interchangeable inserts With a crimping width of 10 mm and accommodating wire end ferrules with a maximum cross-section of 70 mm², it delivers precision for all your crimping tasks The tool features a hexagonal crimp design, ensuring reliable performance and uniform results every time.

Features and Benefits:

    •Mechanical tool without interchangeable inserts.

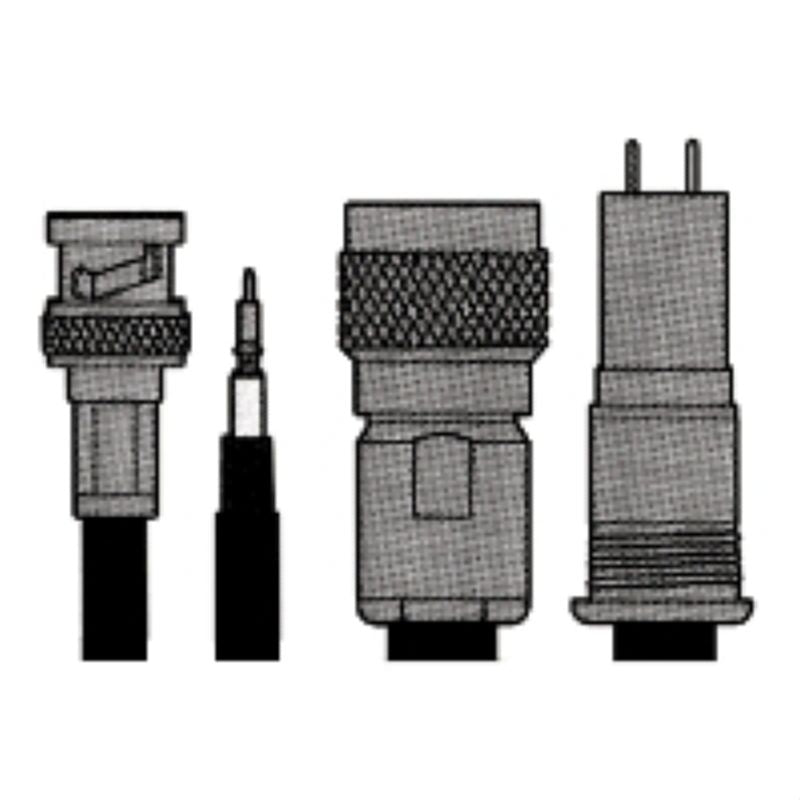

    •Designed for Twinax coaxial cable.

    •Crimping width of 10 mm.

    •Hexagonal crimp type.

    •Reliable connections for coaxial connectors.

Specifications:

 Order No. 9012400000
 GTIN (EAN) 4008190036546
 Net weight 415.08 g
 Crimping station width (B 1) 10 mm
 Crimping station width (B 2) 2.3 mm
 Diameter of outer sleeve 9.5 mm
 Hexagon AF (A) 8.24 mm
 Hexagon spanner width (A 2) 1.72 mm
 Internal contact diameter (D) 2 mm
 Wire end ferrules cross-section, max. 70 mm²
 Wire end ferrules cross-section, min. 4 mm²
 RoHS Compliance Status Not affected
 REACH SVHC Lead 7439-92-1
 SCIP 2159813b-98fd-4068-b62a-bc89a046c012
 ETIM 6.0 EC000168
 ETIM 7.0 EC000168
 ETIM 8.0 EC000168
 ETIM 9.0 EC000168
 ETIM 10.0 EC000168
 ECLASS 9.0 21-04-38-11
 ECLASS 9.1 21-04-38-11
 ECLASS 10.0 21-04-38-11
 ECLASS 11.0 21-04-38-11
 ECLASS 12.0 21-04-38-11
 ECLASS 13.0 21-04-38-11
 ECLASS 14.0 21-04-38-11
 ECLASS 15.0 21-04-38-11
