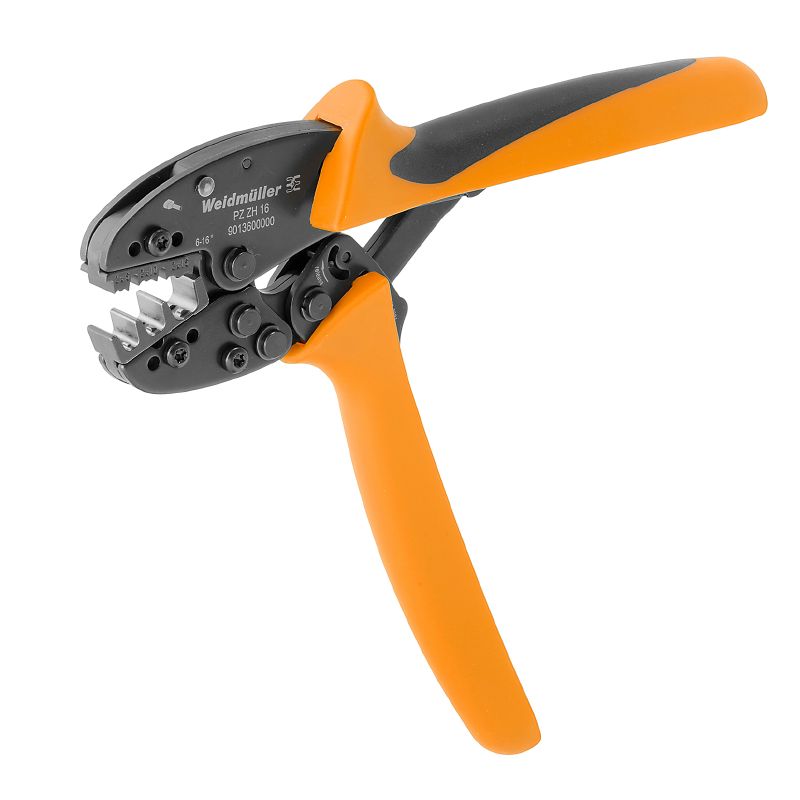

9013600000 - PZ ZH 16 Indent Crimping Tool for 6-16mm² Ferrules

9013600000 - PZ ZH 16 Indent Crimping Tool for 6-16mm² Ferrules

SKU: SKU: 9013600000 Download PDF

Variant:
  • 9013600000 - PZ ZH 16 Indent Crimping Tool for 6-16mm² Ferrules
Regular price Now $368.16
Regular price BEFORE   $0.00 Sale price Now $368.16
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PZ ZH 16 crimping tool, engineered specifically for wire-end ferrules This robust mechanical tool offers a crimping capacity ranging from 6mm² to 16mm², perfect for your crimping needs With no interchangeable inserts, it provides reliable indent crimping every time It supports wire sizes with a maximum cross-section of AWG 6 and a minimum of AWG 10, making it a versatile choice for various electrical applications.

Features and Benefits:

    •Mechanical crimping tool without interchangeable inserts.

    •Designed for twin wire-end ferrules.

    •Enables crimping of wire end ferrules in a range from 6mm² to 16mm².

Specifications:

 Width: 250 mm
 Width (inches): 9.842 inch
 RoHS Compliance Status: Not affected
 REACH SVHC: Lead 7439-92-1
 SCIP: 2159813b-98fd-4068-b62a-bc89a046c012
 Crimping range, max: 16 mm²
 Crimping range, min: 6 mm²
 Crimping type/profile: Indent crimp
 Conductor cross-section, max. AWG: AWG 6
 Conductor cross-section, min. AWG: AWG 10
 ETIM 6.0: EC000168
 ETIM 7.0: EC000168
 ETIM 8.0: EC000168
 ETIM 9.0: EC000168
 ETIM 10.0: EC000168
 ECLASS 9.0: 21-04-38-11
 ECLASS 9.1: 21-04-38-11
 ECLASS 10.0: 21-04-38-11
 ECLASS 11.0: 21-04-38-11
 ECLASS 12.0: 21-04-38-11
 ECLASS 13.0: 21-04-38-11
 ECLASS 14.0: 21-04-38-11
 ECLASS 15.0: 21-04-38-11
