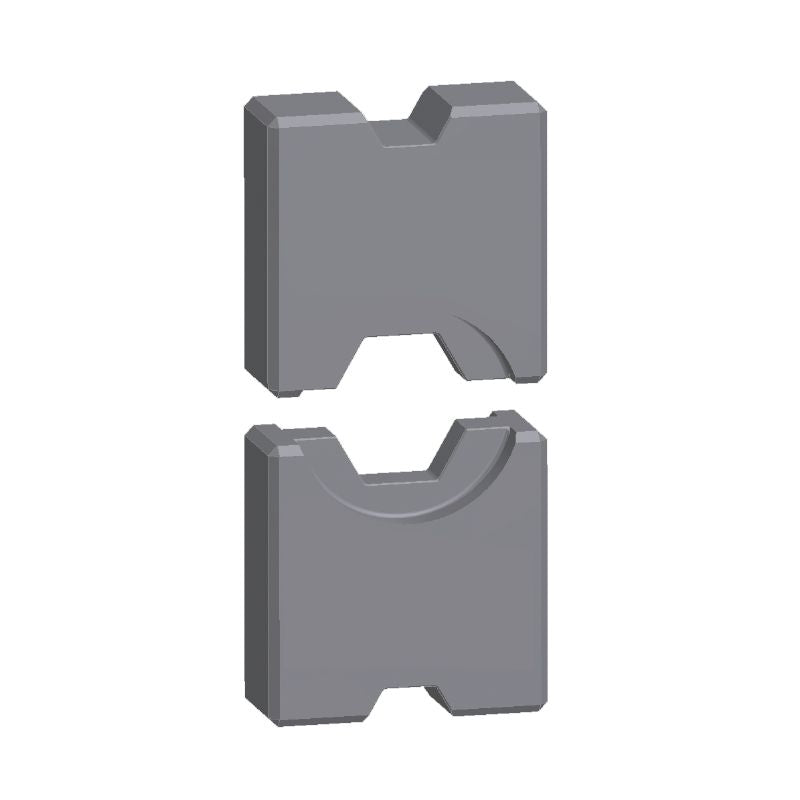

1500980000 - 5mm Hexagonal Crimp Tool for 95mm² Conductors

1500980000 - 5mm Hexagonal Crimp Tool for 95mm² Conductors

SKU: SKU: 1500980000 Download PDF

Variant:
  • 1500980000 - 5mm Hexagonal Crimp Tool for 95mm² Conductors
Regular price Now $121.60
Regular price BEFORE   $0.00 Sale price Now $121.60
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the ES EPG 45 HEX 95, a specialized hexagonal crimp connector tailored for conductor sizes up to 95mm² Weighing in at just 136 grams, this connector meets all RoHS standards without any exceptions It is meticulously crafted for seamless crimping of both aluminum and copper materials, boasting a crimping width of 5mm for optimal performance Perfect for all your electrical connection needs, it combines reliability and efficiency in one durable product.

Features and Benefits:

    •Weight of 136 grams.

    •RoHS compliant without exemption.

    •Crimping width of 5mm.

    •Designed for 95mm² crimp cross-section.

Specifications:

 Depth (mm) 12
 Height (mm) 60
 Width (mm) 30
 Crimp cross-section aluminium 70
 Crimp cross-section copper 95
 Identification number 18
 Conductor cross-section, max. AWG 3/0
 Conductor cross-section, min. AWG 3/0
 Crimping range, max. 95 mm²
 Crimping type/profile Hexagonal crimp
 ETIM 6.0 EC001282
 ETIM 7.0 EC001282
 ETIM 8.0 EC001282
 ETIM 9.0 EC001282
 ETIM 10.0 EC001282
 ECLASS 9.0 21-04-90-90
 ECLASS 9.1 21-01-90-90
 ECLASS 10.0 21-04-90-90
 ECLASS 11.0 21-04-90-90
 ECLASS 12.0 21-04-90-90
 ECLASS 13.0 21-04-90-90
 ECLASS 14.0 21-04-90-90
 ECLASS 15.0 21-04-90-90
