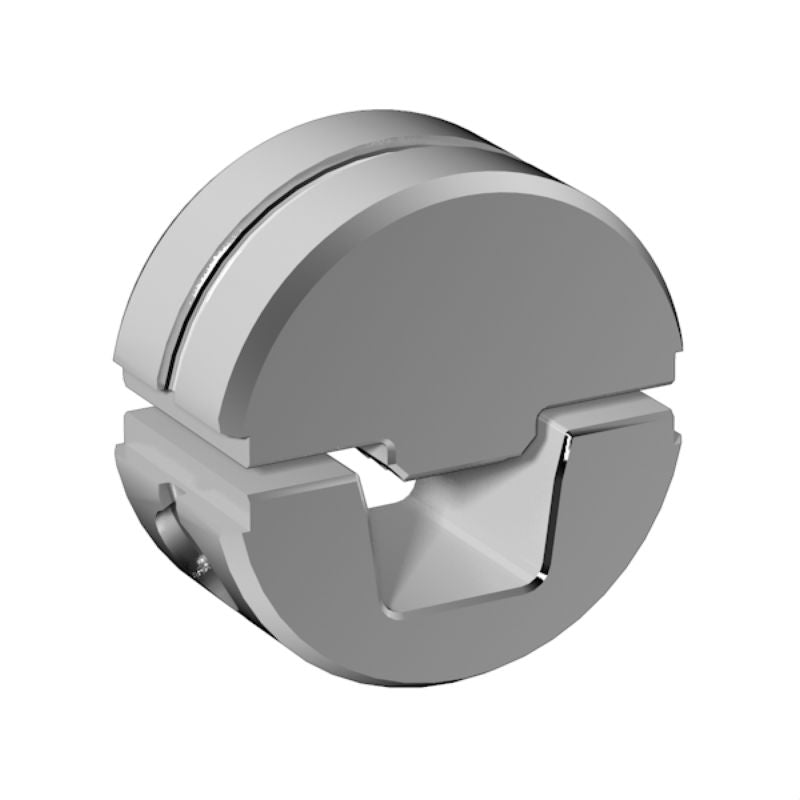

2577930000 - Trapezoidal Crimping Tool Insert 185mm² for Wire-End Ferrules
2577930000 - Trapezoidal Crimping Tool Insert 185mm² for Wire-End Ferrules
SKU: SKU: 2577930000 Download PDF
- 2577930000 - Trapezoidal Crimping Tool Insert 185mm² for Wire-End Ferrules
- 2577930000 - Trapezoidal Crimping Tool Insert 185mm² for Wire-End Ferrules
Couldn't load pickup availability
Description:
Introducing a versatile crimping tool insert designed for effective use with wires having a cross-section of 185mm² Featuring a trapezoidal crimp profile, this insert is adept at accommodating wire-end ferrules, whether they come with plastic collars or not Its maximum crimping capability of 185mm² makes it a valuable asset for a range of crimping tasks.
Features and Benefits:
•RoHS compliant without exemption.
•No SVHC above 0.1 wt%.
•Includes crimping width of 22 mm.
•Supported AWG sizes are 6/0 for both maximum and minimum conductor cross-section.
Specifications:
| Depth | 22 mm |
| Height | 42 mm |
| Width | 42 mm |
| Net weight | 25 g |
| Crimp cross-section copper | 185 |
| Crimping type/profile | Trapezoidal crimp |
| Type of contact | Wire-end ferrules with/without plastic collars |
| Crimping range, max. | 185 mm² |
| Classifications | {'ETIM 6.0': 'EC001282', 'ETIM 7.0': 'EC001282', 'ETIM 8.0': 'EC001282', 'ETIM 9.0': 'EC001282', 'ETIM 10.0': 'EC001282', 'ECLASS 9.0': '21-04-90-90', 'ECLASS 9.1': '21-01-90-90', 'ECLASS 10.0': '21-04-90-90', 'ECLASS 11.0': '21-04-90-90', 'ECLASS 12.0': '21-04-90-90', 'ECLASS 13.0': '21-04-90-90', 'ECLASS 14.0': '21-04-90-90', 'ECLASS 15.0': '21-04-90-90'} |
