Description:

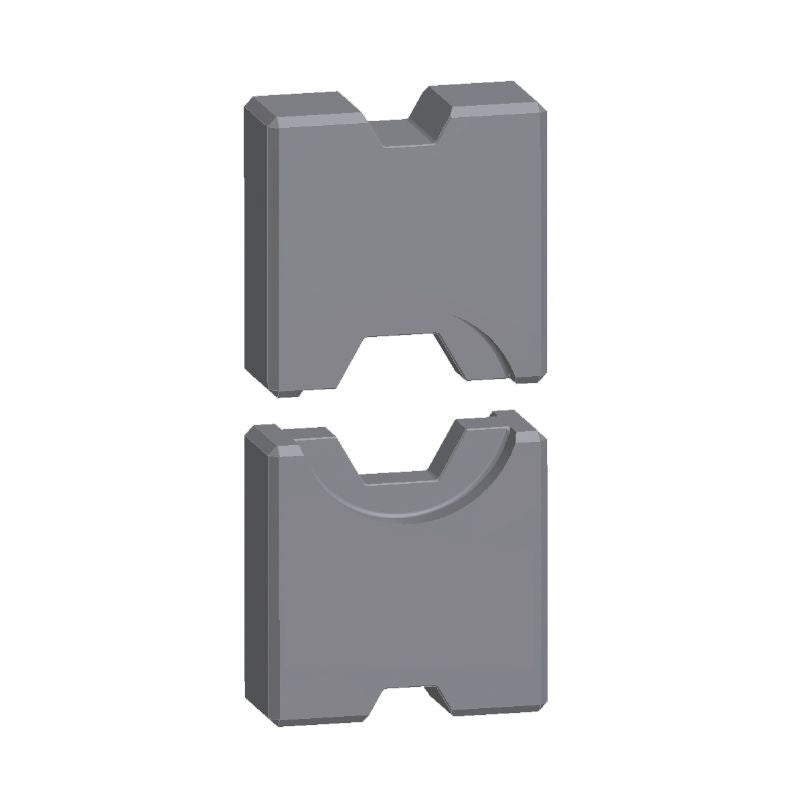

Introducing the ES EPG 45 HEX 10/70, a versatile hexagonal crimp designed for use with both aluminum and copper conductors This crimp accommodates a maximum cross-section of 70mm², making it a reliable choice for various applications It measures 12mm in depth, 60mm in height, and 30mm in width, with a total weight of 130g Rest assured, this product meets RoHS standards and contains no SVHC above 01 weight percent, ensuring safety and compliance for your projects.
Features and Benefits:
•Hexagonal crimp design.
•Compliant with RoHS standards.
•No SVHC materials present above threshold.
Specifications:
| Crimp cross-section aluminium | -/50 |
| Crimp cross-section copper | 10/70 |
| Crimping width in mm | 7/5 |
| Identification number | 6/16 |
| Conductor cross-section, max. AWG | 2/0 |
| Conductor cross-section, min. AWG | 8 |
| Crimping range, max. | 70 mm² |
| Cable lug cross section nominal | 10 mm² / 70 mm² |
| Crimping type/profile | Hexagonal crimp |
| ETIM 6.0 | EC001282 |
| ETIM 7.0 | EC001282 |
| ETIM 8.0 | EC001282 |
| ETIM 9.0 | EC001282 |
| ETIM 10.0 | EC001282 |
| ECLASS 9.0 | 21-04-90-90 |
| ECLASS 9.1 | 21-01-90-90 |
| ECLASS 10.0 | 21-04-90-90 |
| ECLASS 11.0 | 21-04-90-90 |
| ECLASS 12.0 | 21-04-90-90 |
| ECLASS 13.0 | 21-04-90-90 |
| ECLASS 14.0 | 21-04-90-90 |
| ECLASS 15.0 | 21-04-90-90 |
