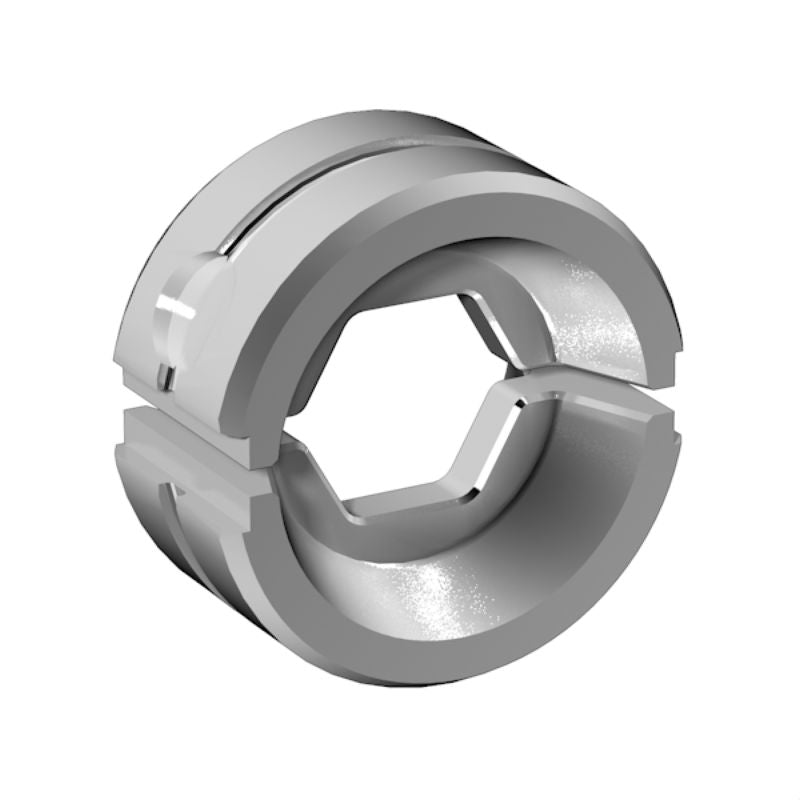

2505200000 - Hex Crimping Tool Insert 50mm², 42mm High, RoHS Compliant

2505200000 - Hex Crimping Tool Insert 50mm², 42mm High, RoHS Compliant

SKU: SKU: 2505200000 Download PDF

Variant:
  • 2505200000 - Hex Crimping Tool Insert 50mm², 42mm High, RoHS Compliant
Regular price Now $195.80
Regular price BEFORE   $0.00 Sale price Now $195.80
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the convenience of this specialized crimping tool insert, tailored for creating hexagonal crimps with a cross-section of 50mm² This insert is versatile enough to work with various cable types, all while conforming to strict environmental standards Each insert comes with identifiable ordering data including an order number and GTIN code Measuring 22 mm deep, 42 mm high, and 42 mm wide, this insert has a net weight of 138 grams.

It meets RoHS compliance without any exemptions, ensuring it contains no Substances of Very High Concern (SVHC) above 01 wt% With a crimp width of 5 mm, it is compatible with both aluminum and copper cables, making it an essential tool for your crimping needs, accommodating a maximum crimping capacity of 50 mm².

Features and Benefits:

    •Crimping insert for hexagonal crimping.

    •Compatible with both aluminium and copper.

    •RoHS compliant without exemptions.

    •Compact dimensions.

Specifications:

 Crimp cross-section aluminium 35
 Crimp cross-section copper 50
 Crimping range, max. 50 mm²
 Crimping width 5 mm
 Conductor cross-section, max. AWG 1
 Conductor cross-section, min. AWG 1
 Identification number 14
 Type of contact DIN 46235 cable lug, DIN 46267 Part 1 cable lug
 ETIM 6.0 EC001282
 ETIM 7.0 EC001282
 ETIM 8.0 EC001282
 ETIM 9.0 EC001282
 ETIM 10.0 EC001282
 ECLASS 9.0 21-04-90-90
 ECLASS 9.1 21-01-90-90
 ECLASS 10.0 21-04-90-90
 ECLASS 11.0 21-04-90-90
 ECLASS 12.0 21-04-90-90
 ECLASS 13.0 21-04-90-90
 ECLASS 14.0 21-04-90-90
 ECLASS 15.0 21-04-90-90
