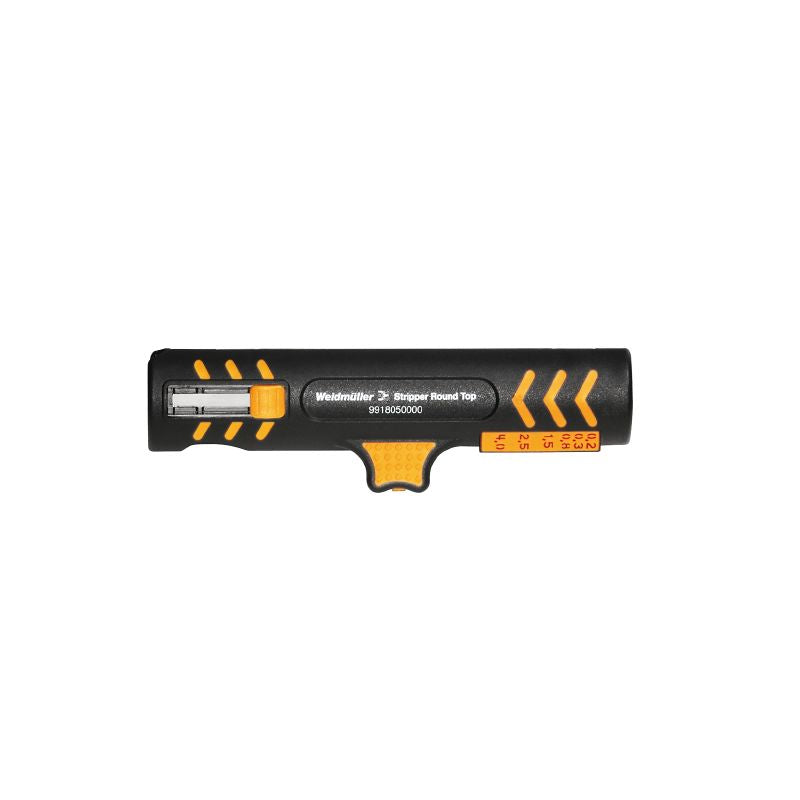

9918050000 - Versatile PVC Insulation Stripper for Conductors 0.2-4 mm²
9918050000 - Versatile PVC Insulation Stripper for Conductors 0.2-4 mm²
SKU: SKU: 9918050000 Download PDF
- 9918050000 - Versatile PVC Insulation Stripper for Conductors 0.2-4 mm²
- 9918050000 - Versatile PVC Insulation Stripper for Conductors 0.2-4 mm²
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the versatile junction box sheathing stripper, equipped with a specialized core stripping unit and a longitudinal cutter This essential tool is designed for removing insulation from both flexible and solid conductors with PVC coating, accommodating conductor cross-sections from a minimum of 02 mm² to a maximum of 4 mm² It can handle conductor diameters between 8 mm and 13 mm, making it ideal for a range of wiring tasks.
Features and Benefits:
•Designed for flexible and solid conductors.
•Includes individual core stripping unit.
•Features a longitudinal cutter.
Specifications:
| Depth: | 25 mm |
| Height: | 35 mm |
| Width: | 125 mm |
| Max. conductor diameter: | 13 mm |
| Min. conductor diameter: | 8 mm |
| Conductor cross-section, max.: | 4 mm² |
| Conductor cross-section, min.: | 0.2 mm² |
| Stripping range, min.: | 0.25 mm² |
| RoHS Compliance Status: | Not affected |
| REACH SVHC: | Lead 7439-92-1 |
| SCIP: | cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0 |
| GTIN (EAN): | 4032248359165 |
| Order No.: | 9918050000 |
