Description:

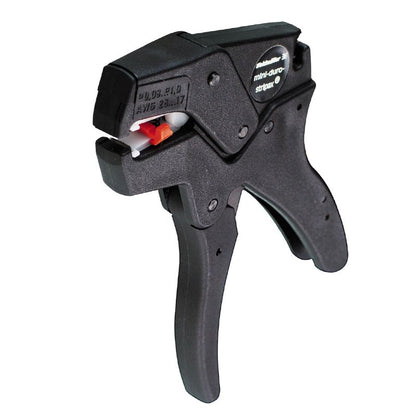

Introducing the M-D-STRIPAX, a precision tool tailored for effective wire stripping and cutting This versatile instrument is compatible with conductors featuring PVC or silicone insulation, catering to a maximum conductor cross-section of 1 mm² Whether you're working with flexible or solid cables, this tool guarantees optimal performance, making wire preparation tasks easier and more efficient.
Features and Benefits:
•Allows stripping of conductors ranging from 0.08 mm² to 1 mm².
•Capable of handling conductor diameters between 0.3 mm and 1.3 mm.
•Stripping length capability of up to 7 mm.
•Fits within AWG ranges of 18 to 28.
Specifications:
| Depth | 16 mm |
| Height | 135 mm |
| Width | 82 mm |
| Net weight | 107.36 g |
| Max. conductor diameter | 1.3 mm |
| Min. conductor diameter | 0.3 mm |
| Stripping length, max | 7 mm |
| Conductor cross-section, max | 1 mm² |
| Conductor cross-section, min | 0.08 mm² |
| Stripping range AWG, max | 18 AWG |
| Stripping range AWG, min | 28 AWG |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| GTIN (EAN) | 4008190011215 |
