1512780000 - Ultimate XL Wire Stripping Tool for 2.5-10 mm² Wires
1512780000 - Ultimate XL Wire Stripping Tool for 2.5-10 mm² Wires
SKU: SKU: 1512780000 Download PDF
- 1512780000 - Ultimate XL Wire Stripping Tool for 2.5-10 mm² Wires
- 1512780000 - Ultimate XL Wire Stripping Tool for 2.5-10 mm² Wires
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

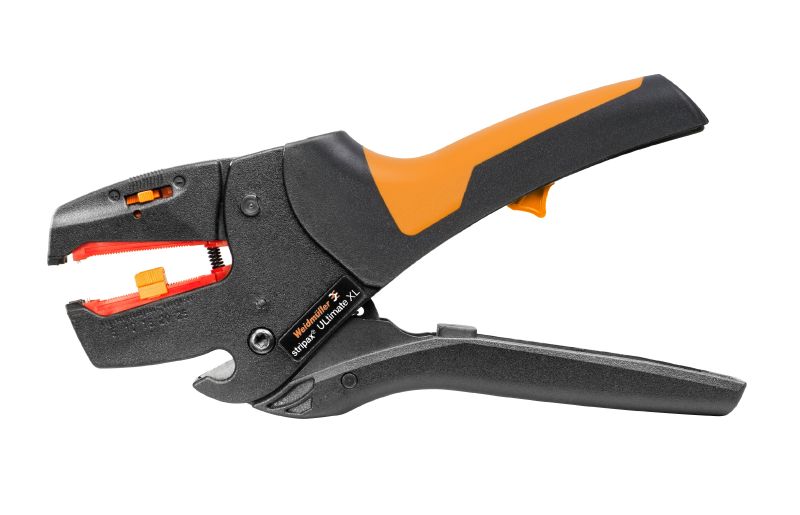

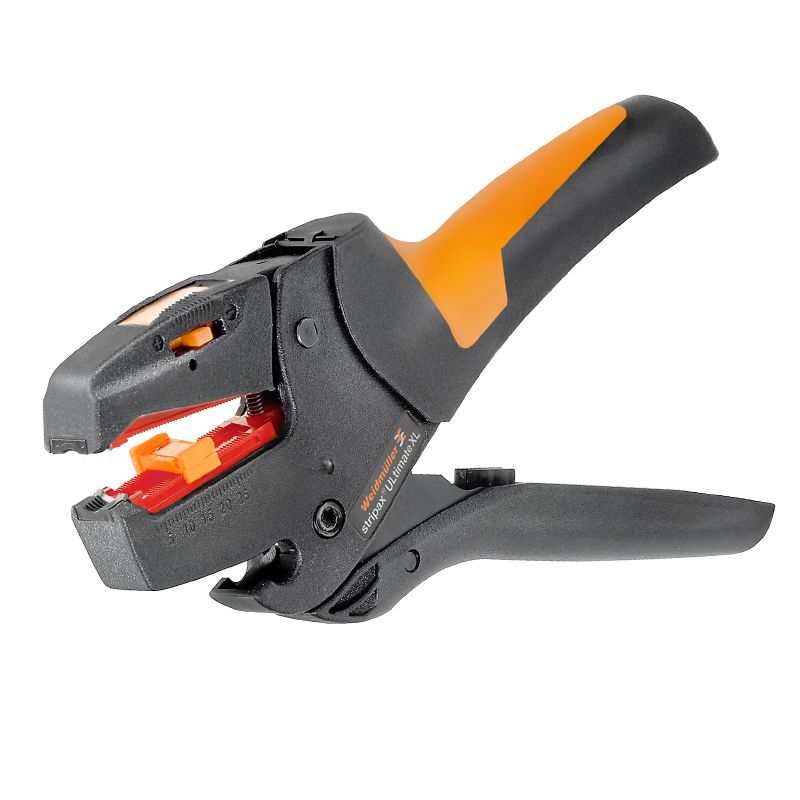

Introducing the STRIPAX ULTIMATE XL, an innovative tool for stripping and cutting various wire types This versatile instrument is capable of handling both flexible and solid wires that have halogen-free insulation It allows for work with conductors ranging from 25 mm² to a maximum of 10 mm² in cross-section The tool can strip lengths of up to 25 mm and covers AWG sizes from 8 to 14, making it an essential addition to your toolkit for efficient wire preparation.
Features and Benefits:
•Suitable for flexible and solid conductors.
•Offers halogen-free insulation compatibility.
•Effective for a range of conductor cross-sections.
Specifications:
| Depth | 22 mm |
| Height | 99 mm |
| Width | 190 mm |
| Conductor cross-section (cutting capacity) | 6 mm² |
| Conductor cross-section, max. | 10 mm² |
| Conductor cross-section, min. | 2.5 mm² |
| Stripping length, max. | 25 mm |
| Stripping range AWG, max. | 8 AWG |
| Stripping range AWG, min. | 14 AWG |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| GTIN (EAN) | 4050118319934 |
