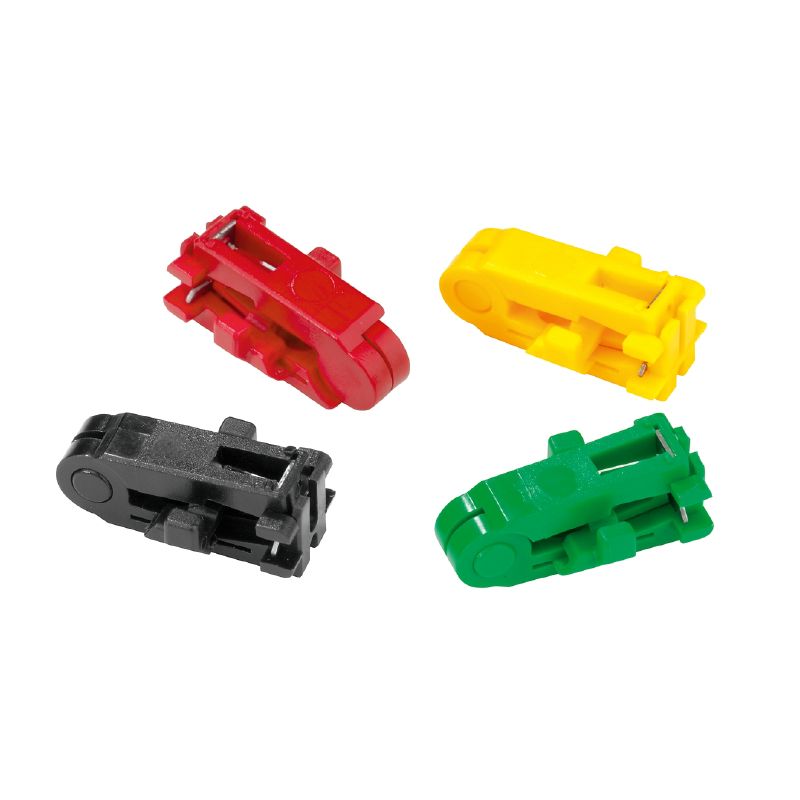

9003600000 - Mini-Duro-Stripax Blades for AWG 30 Wire Cutting and Stripping
9003600000 - Mini-Duro-Stripax Blades for AWG 30 Wire Cutting and Stripping
SKU: SKU: 9003600000 Download PDF
- 9003600000 - Mini-Duro-Stripax Blades for AWG 30 Wire Cutting and Stripping
- 9003600000 - Mini-Duro-Stripax Blades for AWG 30 Wire Cutting and Stripping
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a versatile set of blades compatible with the Mini-Duro-Stripax, built to efficiently cut and strip conductors with custom PTFE insulation These blades are capable of accommodating wire gauges up to AWG 30, making them an essential tool for precision wire work.
Features and Benefits:
•Designed for Mini-Duro-Stripax.
•Suitable for conductors with custom insulation.
•Can strip wire gauges up to AWG 30.
Specifications:
| Depth | 16 mm |
| Height | 11.5 mm |
| Width | 26 mm |
| Length | 26 mm |
| Max. conductor diameter | 0.3 mm |
| Min. conductor diameter | 0.2 mm |
| Stripping length, max. | 7 mm |
| Stripping length, min. | 3 mm |
| Colour | yellow |
| RoHS Compliance Status | Not affected |
| REACH SVHC | No SVHC above 0.1 wt% |
| GTIN (EAN) | 4008190140274 |
