9918040000 - Stripping Tool for PVC Conductors, 125mm Width
9918040000 - Stripping Tool for PVC Conductors, 125mm Width
SKU: SKU: 9918040000 Download PDF
- 9918040000 - Stripping Tool for PVC Conductors, 125mm Width
- 9918040000 - Stripping Tool for PVC Conductors, 125mm Width
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

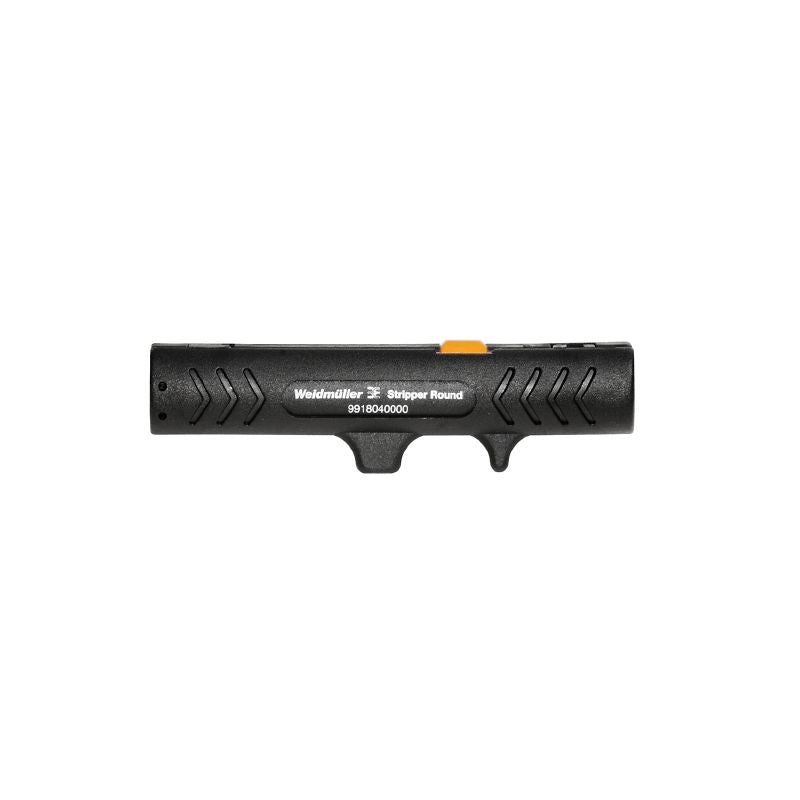

Introducing the ultimate sheathing stripper, expertly designed for removing insulation from both flexible and solid conductors with PVC materials This compact tool measures 125 mm wide, 35 mm high, and 25 mm deep, making it a versatile addition to your toolkit It accommodates conductor cross-sections ranging from 50 mm² up to 133 mm², and is suitable for conductor diameters between 8 mm and 13 mm, ensuring efficient operation for a variety of electrical tasks.
Perfect for professionals and DIY enthusiasts alike.
Features and Benefits:
•Designed for flexible and solid conductors.
•Accommodates various conductor diameters and cross-sections.
•Compliance with RoHS standards.
•Identified under multiple classification systems (ETIM and ECLASS).
Specifications:
| Depth | 25 mm |
| Height | 35 mm |
| Width | 125 mm |
| Net weight | 50 g |
| Max. conductor diameter | 13 mm |
| Min. conductor diameter | 8 mm |
| Conductor cross-section, max. | 133 mm² |
| Conductor cross-section, min. | 50 mm² |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
