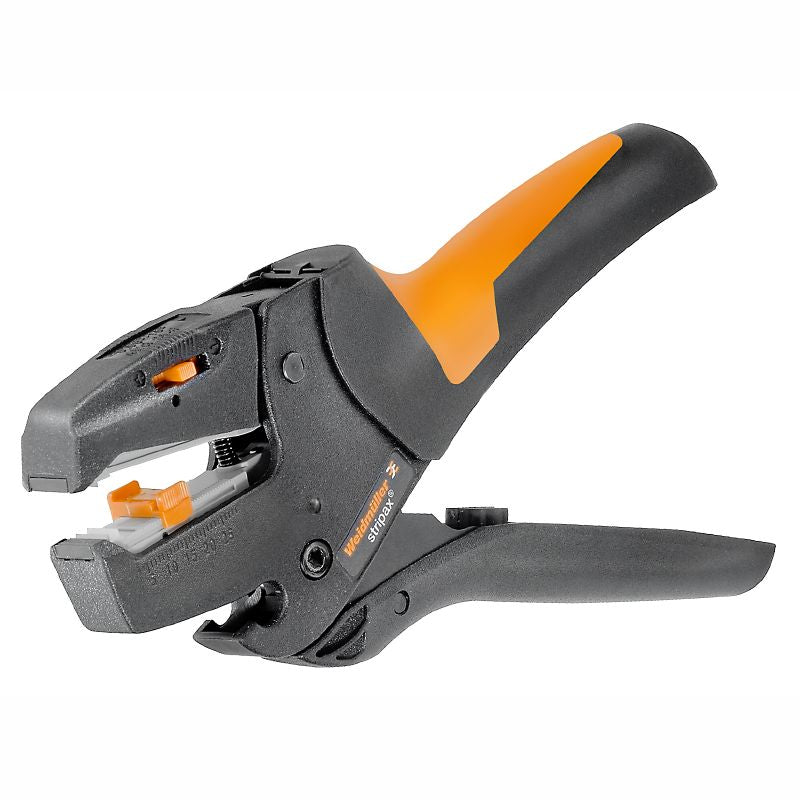

9005000000 - STRIPAX Stripping Tool for Conductors up to 10 mm²
9005000000 - STRIPAX Stripping Tool for Conductors up to 10 mm²
SKU: SKU: 9005000000 Download PDF
- 9005000000 - STRIPAX Stripping Tool for Conductors up to 10 mm²
- 9005000000 - STRIPAX Stripping Tool for Conductors up to 10 mm²
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

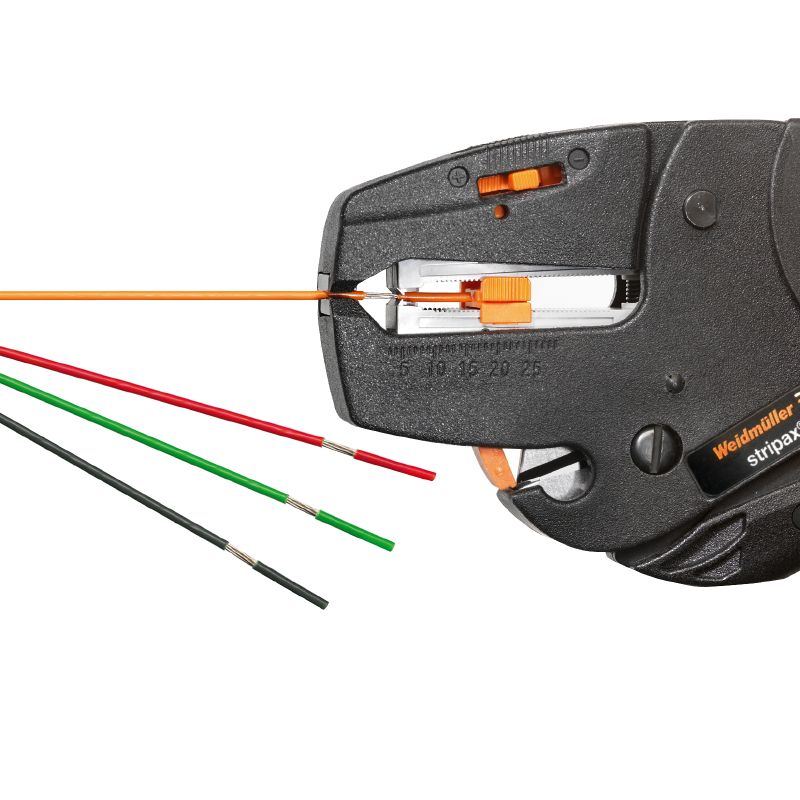

Discover the versatility of the STRIPAX stripping tool, engineered to work with conductors featuring a maximum cross-section of 10 mm² This robust tool is compatible with both flexible and solid conductors encased in PVC insulation It efficiently cuts conductors up to 6 mm² thick, while accepting a minimum cutting capacity of 008 mm² With a maximum stripping length of 25 mm, this tool accommodates wire sizes ranging from AWG 8 to 28, making it an essential addition to your toolkit for electrical projects.
Features and Benefits:
•Strips conductors with a cross-section up to 10 mm².
•Compatible with flexible and solid PVC insulated conductors.
•Maximum stripping length of 25 mm.
•Handles a variety of conductor sizes from 0.08 mm² to 6 mm².
•Stripping wires for electrical connections.
•Preparing cables for assembly.
Specifications:
| Depth | 22 mm |
| Height | 99 mm |
| Width | 190 mm |
| Conductor cross-section (cutting capacity) | 6 mm² |
| Conductor cross-section, max. | 10 mm² |
| Conductor cross-section, min. | 0.08 mm² |
| Stripping length, max. | 25 mm |
| Stripping range AWG, max. | 8 AWG |
| Stripping range AWG, min. | 28 AWG |
| RoHS Compliance Status | Not affected |
