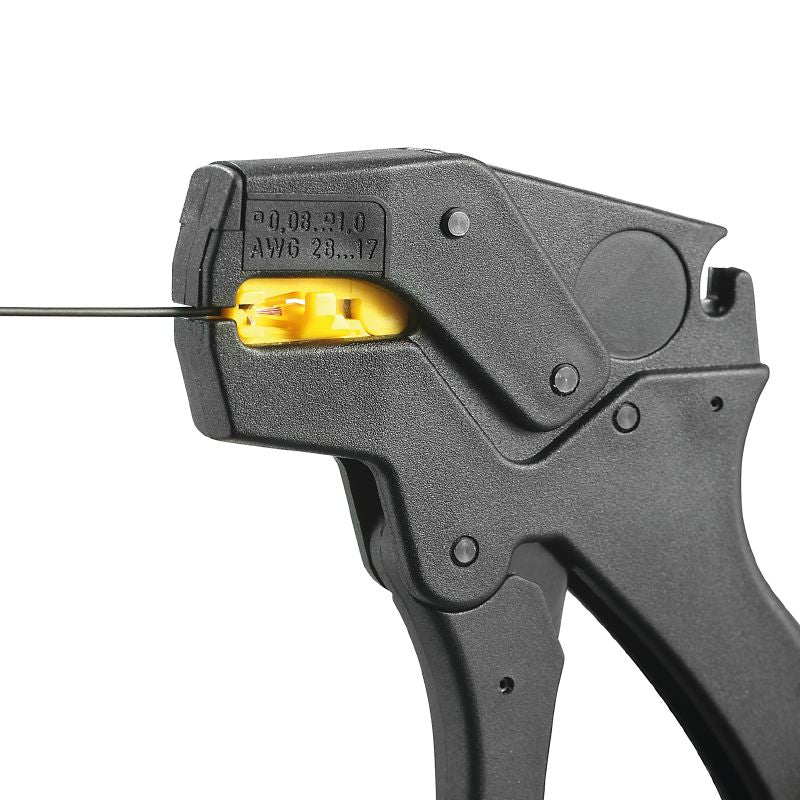

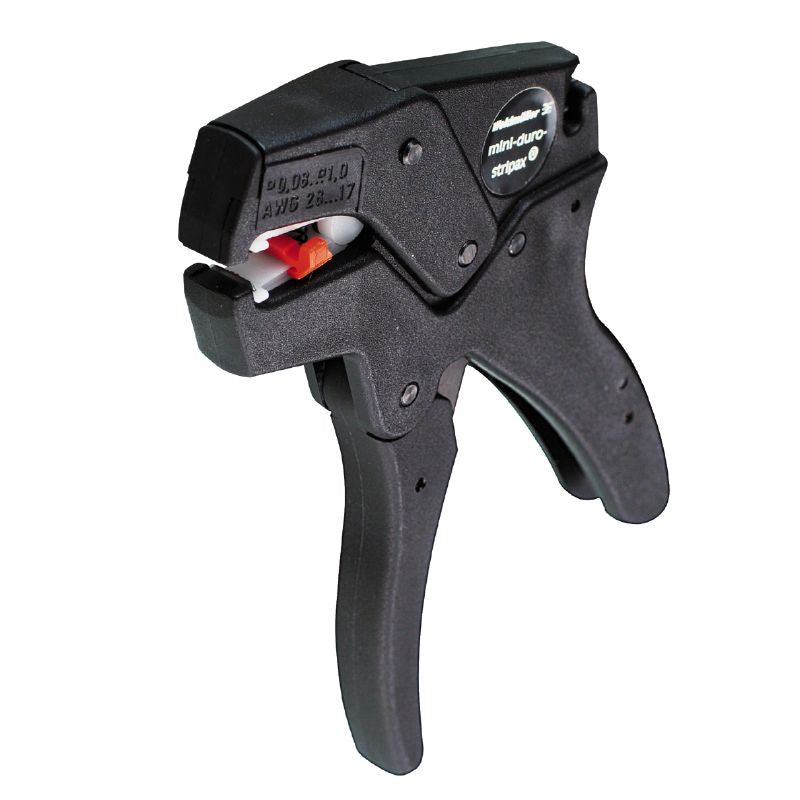

9003500000 - Stripping Tool for Conductors, 0.03-0.82 mm², 6 Blades
9003500000 - Stripping Tool for Conductors, 0.03-0.82 mm², 6 Blades
SKU: SKU: 9003500000 Download PDF
- 9003500000 - Stripping Tool for Conductors, 0.03-0.82 mm², 6 Blades
- 9003500000 - Stripping Tool for Conductors, 0.03-0.82 mm², 6 Blades
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a versatile stripping tool that comes with six sets of blades, expertly crafted for removing insulation from conductors This tool is compatible with conductor cross-sections ranging from 003 mm² to 082 mm² and can manage conductor diameters varying between 02 mm and 13 mm With the capability of achieving a maximum stripping length of 7 mm, it also accommodates AWG sizes from 32 AWG to 18 AWG, making it an essential tool for your electrical tasks.
Features and Benefits:
•Tool is designed for stripping conductors with custom insulation.
•Has six sets of blades for efficient operation.
•Handles a wide range of conductor diameters and cross-sections.
•Supports varying AWG sizes providing versatility.
Specifications:
| Depth: | 16 mm |
| Height: | 135 mm |
| Width: | 82 mm |
| Net weight: | 106.38 g |
| Max. conductor diameter: | 1.3 mm |
| Min. conductor diameter: | 0.2 mm |
| Stripping length, max: | 7 mm |
| Stripping range AWG, max: | 18 AWG |
| Stripping range AWG, min: | 32 AWG |
| Conductor cross-section, max: | 0.82 mm² |
| Conductor cross-section, min: | 0.03 mm² |
| RoHS Compliance Status: | Not affected |
| REACH SVHC: | Lead 7439-92-1 |
| SCIP: | cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0 |
