Description:

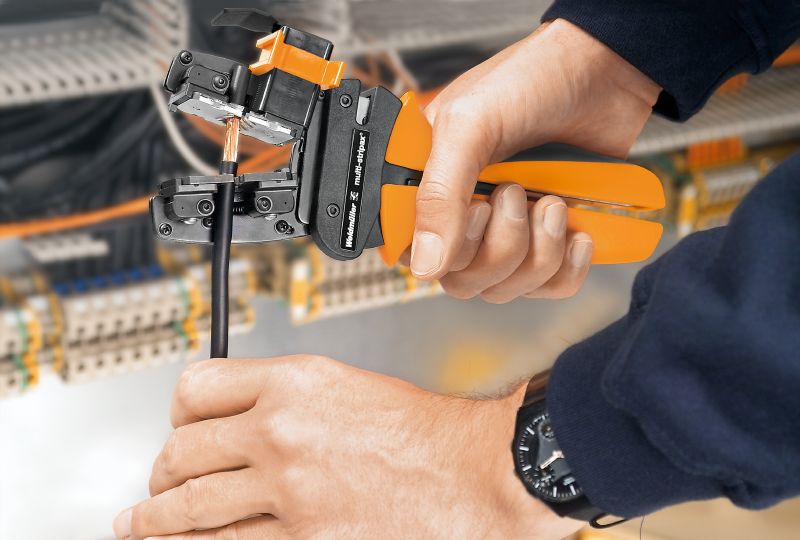

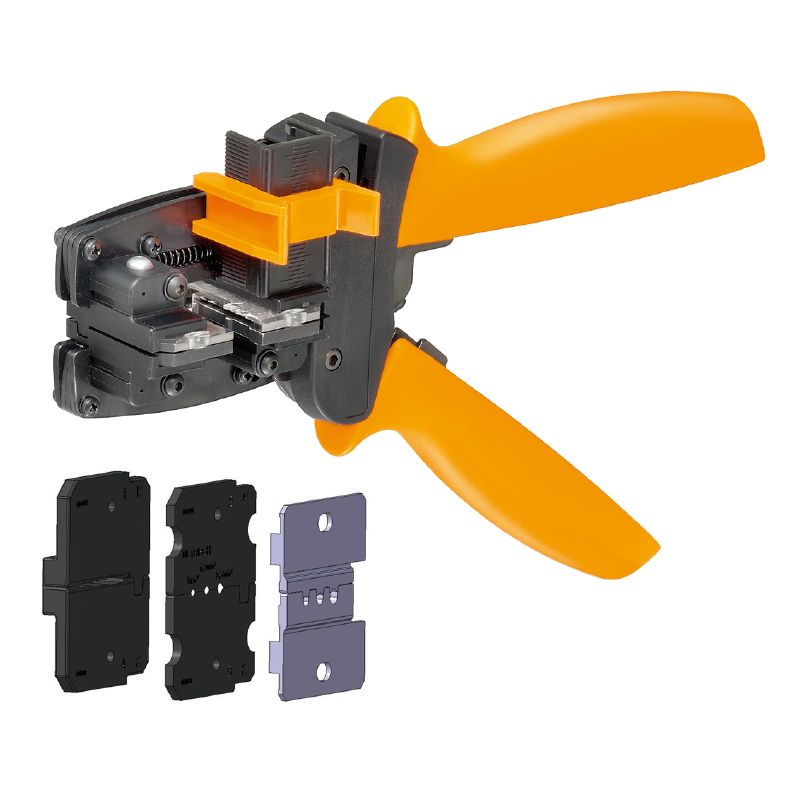

Introducing a specialized stripping and cutting tool tailored for use with the GKW LW This versatile tool ensures accurate cutting for various conductor sizes, boasting a maximum capacity of 6 mm² for fine-stranded wires, 25 mm² for solid wires, and a cutting ability of 102 mm x 4 mm for ribbon conductors It is engineered to strip lengths starting from 2 mm and accommodates AWG sizes ranging from 13 to 14, making it an essential addition to your toolkit for precise electrical work.
Features and Benefits:
•Conductor cutting capacity up to 6 mm².
•Lightweight design at 550 g.
•Able to strip conductors up to 2.5 mm².
•Versatile AWG stripping range.
•Dimensions designed for easy handling.
Specifications:
| Depth | 40 mm |
| Height | 85 mm |
| Width | 250 mm |
| Conductor cross-section max | 2.5 mm² |
| Conductor cross-section min | 1.5 mm² |
| Max cutting capacity fine-strand | 6 mm² |
| Max cutting capacity ribbon | 10.2 mm x 4 mm |
| Max cutting capacity solid | 2.5 mm² |
| Stripping length min | 2 mm |
| Stripping range AWG max | 13 AWG |
| Stripping range AWG min | 14 AWG |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0 |
