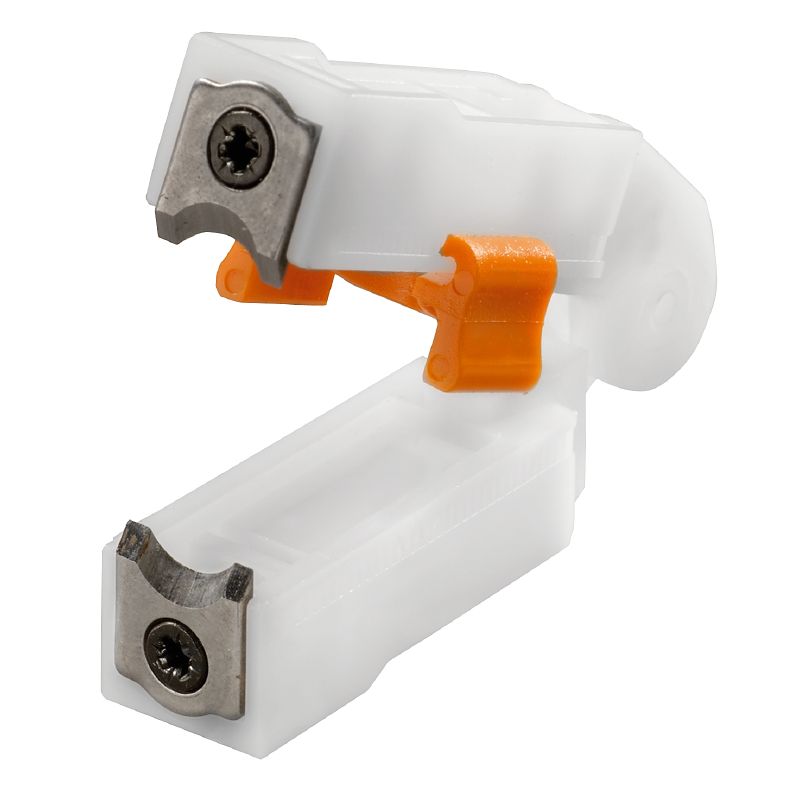

9054080000 - Cutter Holder for Stripax 16, 6-16 mm² Conductor Support
9054080000 - Cutter Holder for Stripax 16, 6-16 mm² Conductor Support
SKU: SKU: 9054080000 Download PDF
- 9054080000 - Cutter Holder for Stripax 16, 6-16 mm² Conductor Support
- 9054080000 - Cutter Holder for Stripax 16, 6-16 mm² Conductor Support
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Enhance your wire stripping efficiency with this specialized cutter holder, crafted for use with Stripax 16 stripping tools It accommodates conductor sizes ranging from a minimum of 6 mm² to a maximum of 16 mm², making it an essential accessory for precise connections.
Features and Benefits:
•RoHS compliant.
•No SVHC above 0.1 wt%.
•Dimensions allow for easy integration into tools.
•Used in conjunction with Stripax 16 stripping tools for effective wire stripping.
Specifications:
| Depth | 11.2 mm |
| Height | 23 mm |
| Width | 30 mm |
| Conductor cross-section, max. | 16 mm² |
| Conductor cross-section, min. | 6 mm² |
| ETIM classifications | {'ETIM 6.0': 'EC001509', 'ETIM 7.0': 'EC001509', 'ETIM 8.0': 'EC001509', 'ETIM 9.0': 'EC001509', 'ETIM 10.0': 'EC001509'} |
| ECLASS classifications | {'ECLASS 9.0': '21-04-92-37', 'ECLASS 9.1': '21-04-48-90', 'ECLASS 10.0': '21-04-92-37', 'ECLASS 11.0': '21-04-48-91', 'ECLASS 12.0': '21-04-48-91', 'ECLASS 13.0': '21-04-48-91', 'ECLASS 14.0': '21-04-48-91', 'ECLASS 15.0': '21-04-48-91'} |
