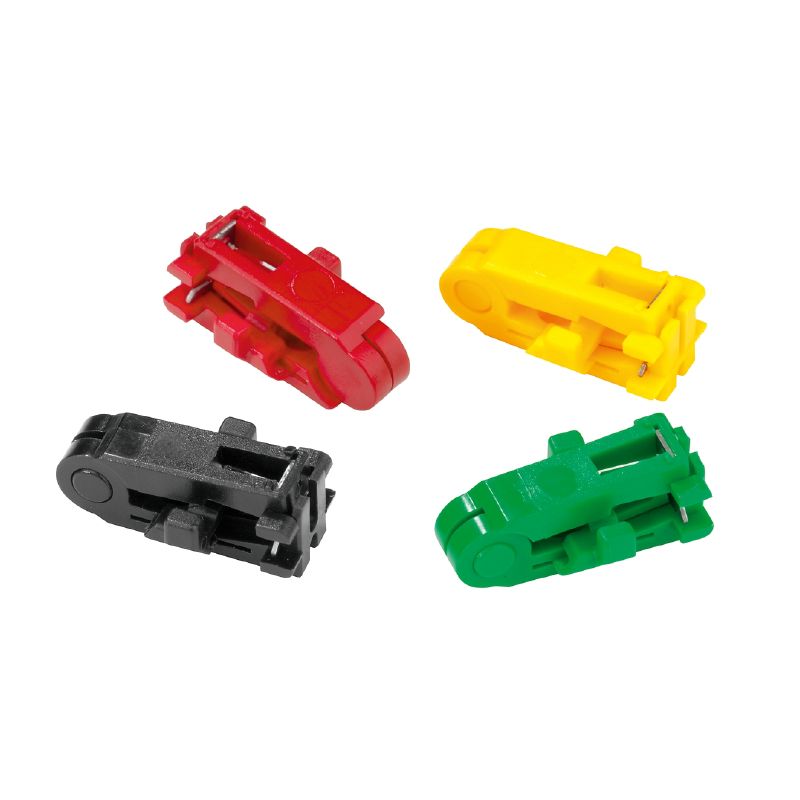

9003610000 - Mini-Duro-Stripax Blades for AWG 24 Conductors, Strip 0.3-0.5mm
9003610000 - Mini-Duro-Stripax Blades for AWG 24 Conductors, Strip 0.3-0.5mm
SKU: SKU: 9003610000 Download PDF
- 9003610000 - Mini-Duro-Stripax Blades for AWG 24 Conductors, Strip 0.3-0.5mm
- 9003610000 - Mini-Duro-Stripax Blades for AWG 24 Conductors, Strip 0.3-0.5mm
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a specialized set of blades tailored for the Mini-Duro-Stripax tool, optimized for stripping insulation from conductors up to AWG 24 that feature PTFE insulation These blades offer exceptional precision for wires with custom insulation, accommodating diameters between 03 mm and 05 mm With adjustable stripping lengths ranging from 3 mm to 7 mm, this product is perfect for your wiring needs.
Features and Benefits:
•Facilitates precise wire stripping for custom insulated conductors.
•Compatible with Mini-Duro-Stripax up to AWG 24.
•Compact dimensions for easy handling.
•Used for stripping PTFE insulated conductors in various electrical applications.
Specifications:
| Depth | 16 mm |
| Height | 11.5 mm |
| Width | 26 mm |
| Length | 26 mm |
| Net weight | 3.68 g |
| Max. conductor diameter | 0.5 mm |
| Min. conductor diameter | 0.3 mm |
| Stripping length, max. | 7 mm |
| Stripping length, min. | 3 mm |
| Colour | red |
| RoHS Compliance Status | Not affected |
| REACH SVHC | No SVHC above 0.1 wt% |
