1468880000 - Efficient Wire Stripping Tool for 0.25-6 mm² Conductors
1468880000 - Efficient Wire Stripping Tool for 0.25-6 mm² Conductors
SKU: SKU: 1468880000 Download PDF
- 1468880000 - Efficient Wire Stripping Tool for 0.25-6 mm² Conductors
- 1468880000 - Efficient Wire Stripping Tool for 0.25-6 mm² Conductors
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

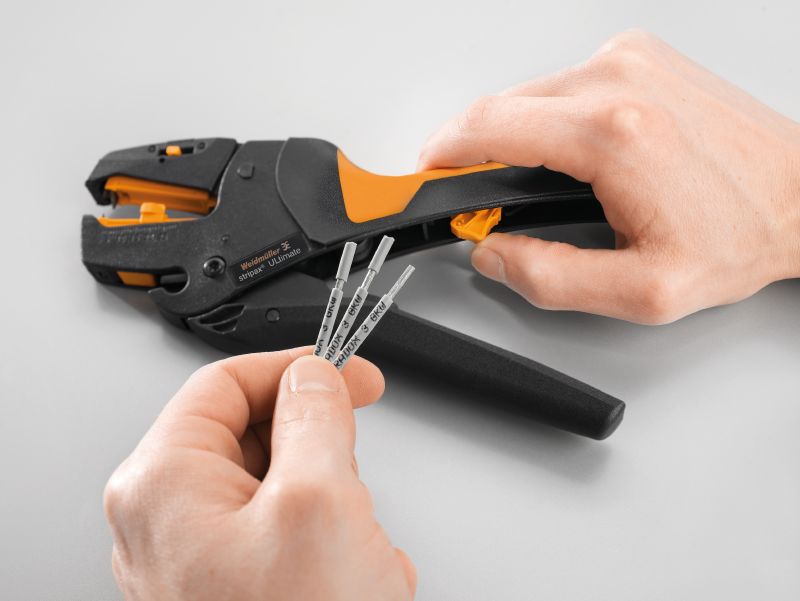

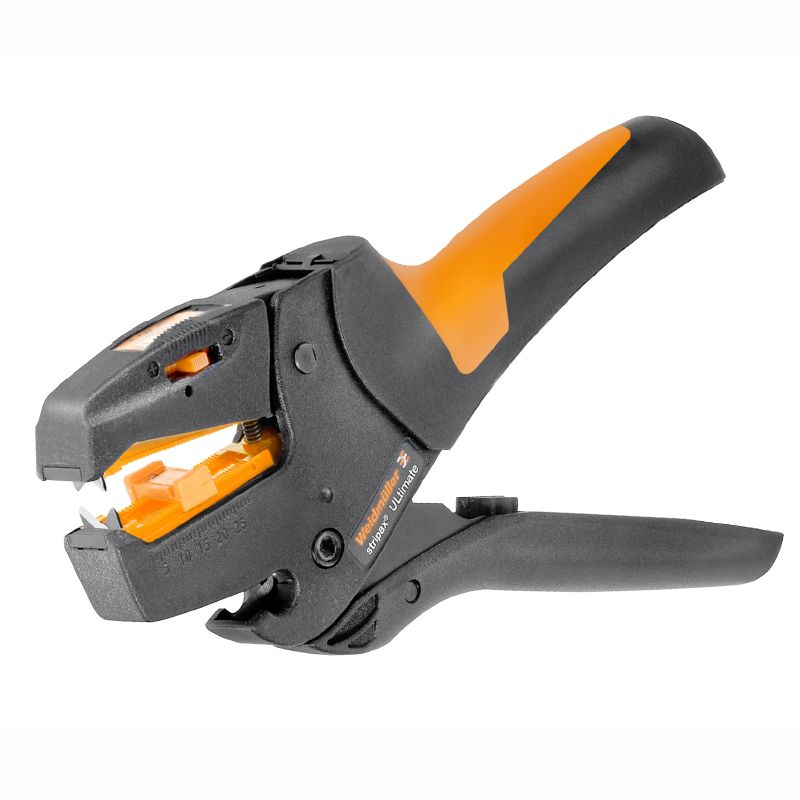

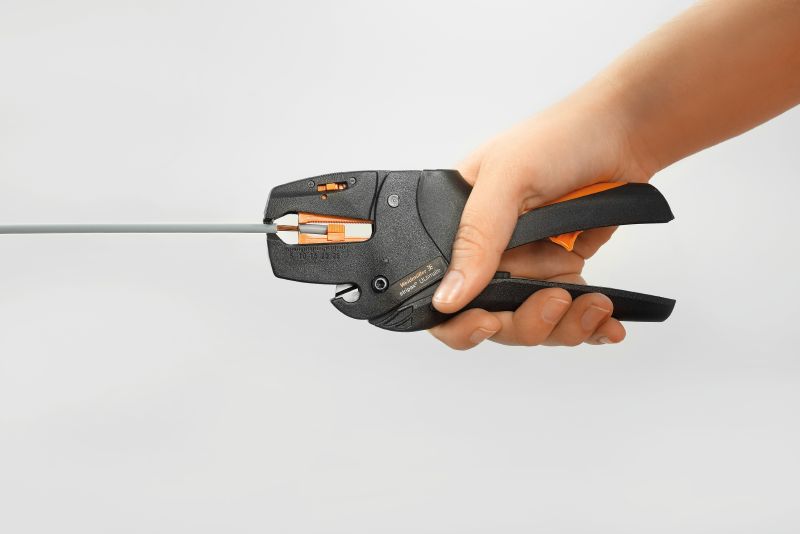

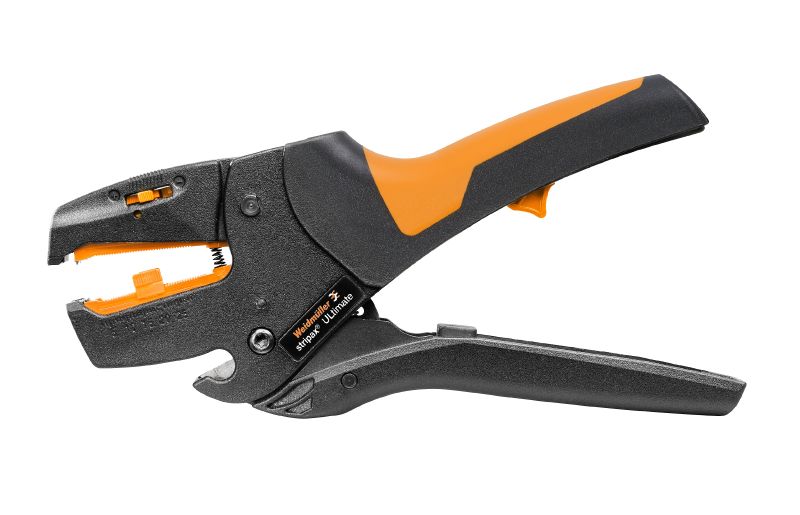

Introducing the STRIPAX ULTIMATE, an efficient wire stripping tool that excels in cutting and stripping wires with ease This tool is compatible with both flexible and solid conductors that feature halogen-free insulation It boasts a maximum cutting capacity for conductor cross-sections reaching 6 mm² and supports a minimum of 025 mm² With the ability to strip lengths of up to 25 mm, it effectively manages wire gauges from 24 AWG to 10 AWG, making it a reliable choice for various electrical projects.
Features and Benefits:

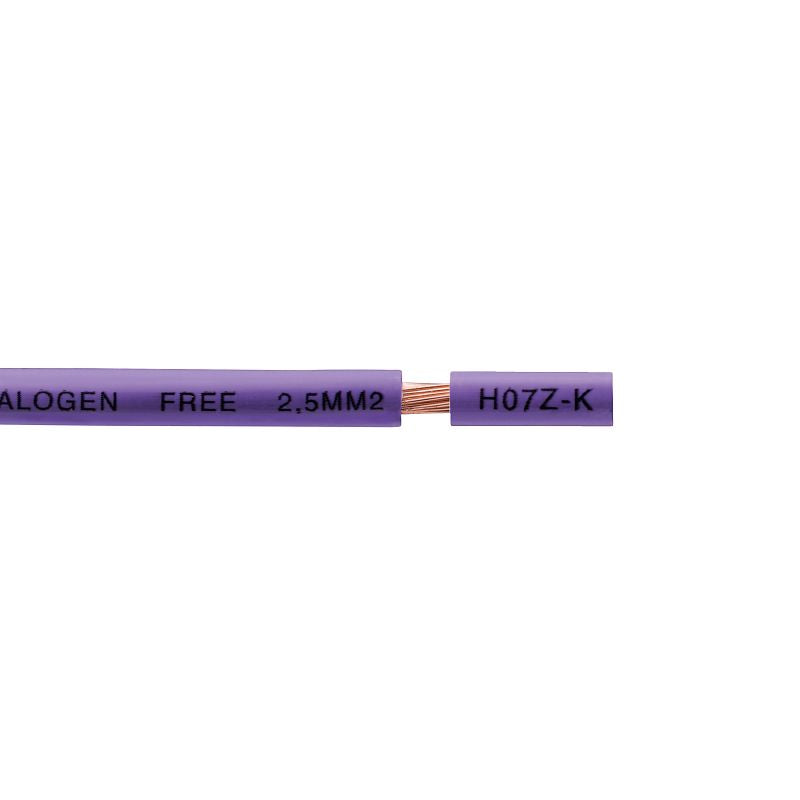

•Designed for both flexible and solid conductors with halogen-free insulation.
•Maximum cutting capacity of 6 mm².
•Strips lengths up to 25 mm.
•Handles wire gauges from 24 AWG to 10 AWG.
Specifications:
| Depth | 22 mm |
| Height | 99 mm |
| Width | 190 mm |
| Conductor cross-section, max. | 6 mm² |
| Conductor cross-section, min. | 0.25 mm² |
| Stripping length, max. | 25 mm |
| Stripping range AWG, max. | 10 AWG |
| Stripping range AWG, min. | 24 AWG |
| RoHS Compliance Status | Not affected |
| GTIN (EAN) | 4050118274158 |
| Net weight | 174.63 g |
