9202220000 - PVC Insulation Stripper for 16 mm² Conductors
9202220000 - PVC Insulation Stripper for 16 mm² Conductors
SKU: SKU: 9202220000 Download PDF
- 9202220000 - PVC Insulation Stripper for 16 mm² Conductors
- 9202220000 - PVC Insulation Stripper for 16 mm² Conductors
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

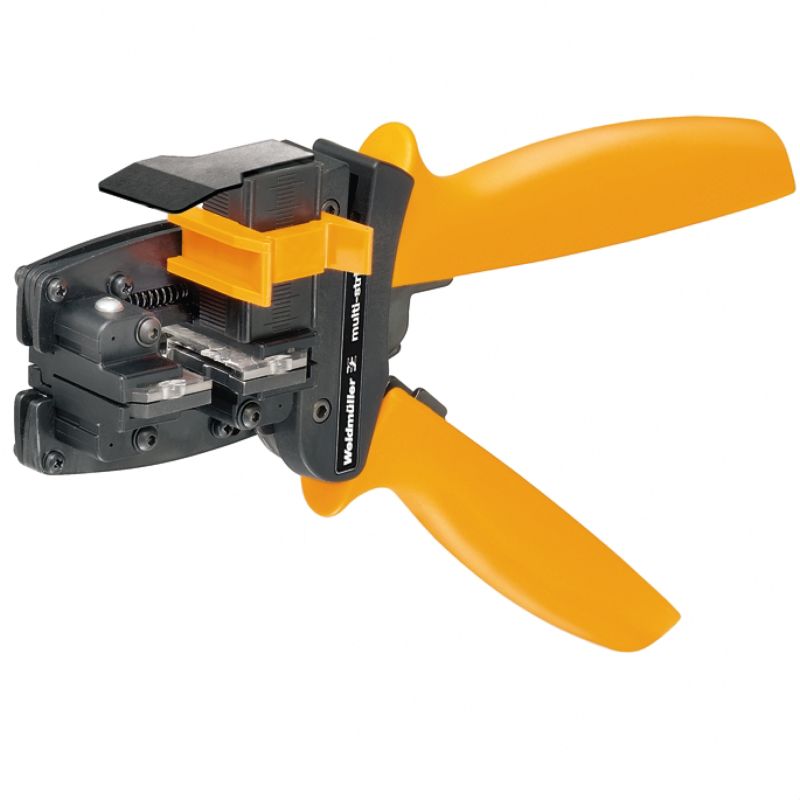

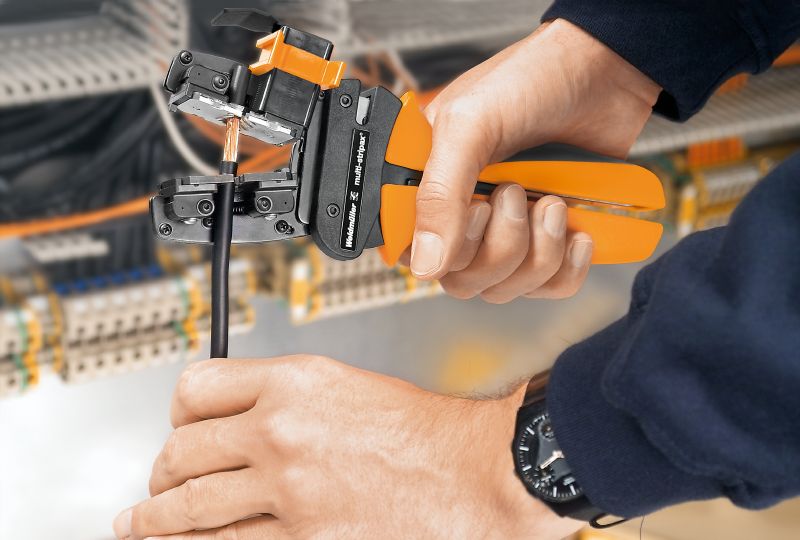

Introducing the MULTI-STRIPAX 16 SL, a premium tool specifically crafted for efficiently stripping and cutting PVC-insulated wires with a maximum cross-section of 16 mm² This versatile device accommodates both flexible and solid conductors, featuring innovative designs that enhance its usability and functionality Perfect for professionals and DIY enthusiasts alike, this tool is a must-have for your electrical projects.
Features and Benefits:
•Stripping length can be a minimum of 2 mm.
•Ideal for a range of conductor sizes from 6 mm² to 16 mm².
•Suitable for cutting various conductor forms including fine-strand and ribbon types.
Specifications:
| Depth: | 40 mm |
| Height: | 85 mm |
| Width: | 250 mm |
| Net weight: | 550 g |
| Cable type: | Flexible and solid conductors with PVC insulation |
| Conductor cross-section (cutting capacity): | 6 mm² |
| Conductor cross-section, max.: | 16 mm² |
| Conductor cross-section, min.: | 6 mm² |
| max. cutting capacity, fine-strand: | 6 mm² |
| max. cutting capacity, ribbon: | 10.2 mm x 4 mm |
| max. cutting capacity, solid: | 2.5 mm² |
| Stripping range AWG, max.: | 6 AWG |
| Stripping range AWG, min.: | 8 AWG |
| RoHS Compliance Status: | Not affected |
| REACH SVHC: | Lead 7439-92-1 |
| SCIP: | cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0 |
