9003620000 - Versatile Wire Stripping Blades for Mini-Duro-Stripax
9003620000 - Versatile Wire Stripping Blades for Mini-Duro-Stripax
SKU: SKU: 9003620000 Download PDF
- 9003620000 - Versatile Wire Stripping Blades for Mini-Duro-Stripax
- 9003620000 - Versatile Wire Stripping Blades for Mini-Duro-Stripax
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

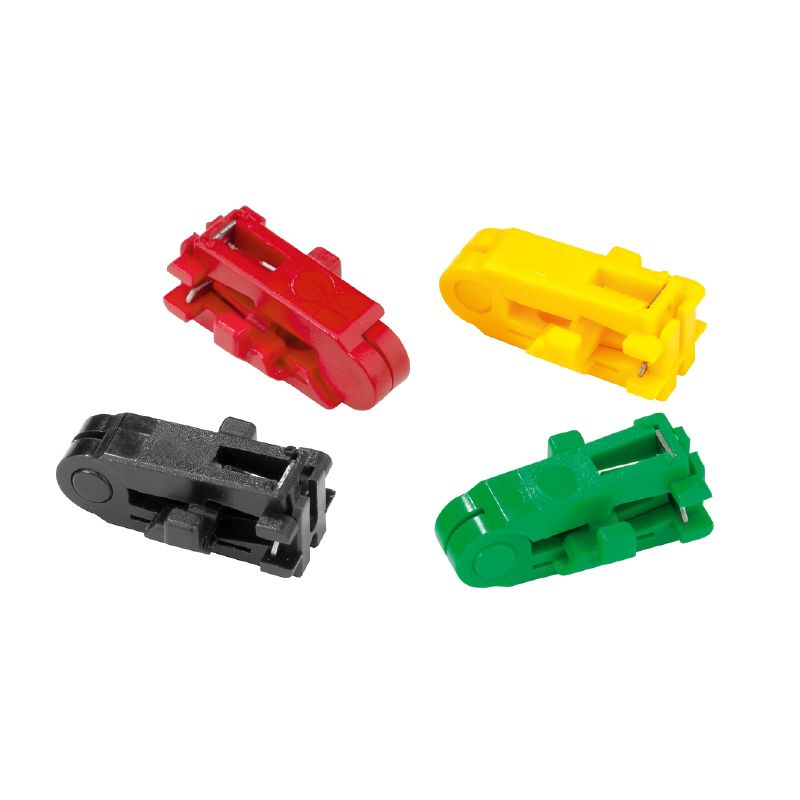

Introducing a versatile set of blades tailored for the Mini-Duro-Stripax, expertly crafted to strip wires up to AWG 20, specifically for PTFE insulation These innovative stripping tools are compatible with a variety of custom insulation types, making them an essential addition for any professional or DIY enthusiast.
Features and Benefits:
•Suitable for stripping wires with a maximum conductor diameter of 0.8 mm and a minimum of 0.55 mm.
•Capable of stripping lengths varying from a minimum of 3 mm to a maximum of 7 mm.
Specifications:
| Max. conductor diameter: | 0.8 mm |
| Min. conductor diameter: | 0.55 mm |
| Stripping length, max.: | 7 mm |
| Stripping length, min.: | 3 mm |
| Depth: | 16 mm |
| Height: | 11.5 mm |
| Width: | 26 mm |
| Length: | 26 mm |
| Net weight: | 3.68 g |
| RoHS Compliance Status: | Not affected |
| REACH SVHC: | No SVHC above 0.1 wt% |
