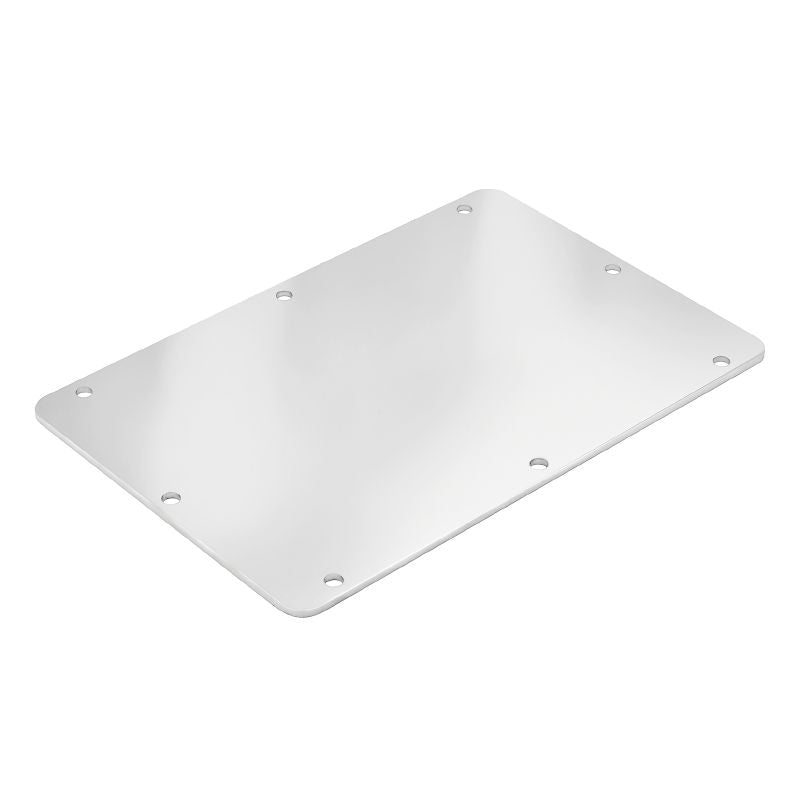

8000114895 - Klippon Terminal Box 614mm, Stainless Steel Flange Design

8000114895 - Klippon Terminal Box 614mm, Stainless Steel Flange Design

SKU: 8000114895   Download PDF

Select a Variant:
  • 8000114895 - Klippon Terminal Box 614mm, Stainless Steel Flange Design
Qty:
Now $262.05   Web pricing policy
BEFORE   $0.00 Now $262.05 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the Klippon TB (Terminal Box), an expertly crafted solution featuring a streamlined straight design and a robust flange plate Measuring 614 mm in height, 117 mm in width, and just 3 mm in depth, this terminal box is perfectly engineered for efficiency The unit is equipped with gland plates positioned on both the top and bottom, constructed from durable stainless steel 14404 (316L) and finished with an attractive electropolished silver surface, ensuring both longevity and a sleek aesthetic.

Ideal for various applications, this terminal box combines functionality with quality.

Features and Benefits:

    •Screw mounting installation.

    •Integral fixing.

    •Protection class ratings: Type 3, Type 4X, Type 12.

    •Electropolished surface finish.

    •Flange plate for earthing with a welded-on M6 x 10 stainless-steel earth stud.

    •Process industry.

    •Explosive risk zone.

Specifications:

 Depth 3 mm
 Height 614 mm
 Width 117 mm
 Net weight 1,717.4 g
 Basic material Stainless steel 1.4404 (316L)
 Material thickness 3 mm
 Solder eyelet hole diameter 7 mm
 RoHS Compliance Status Compliant without exemption
 REACH SVHC No SVHC above 0.1 wt%
