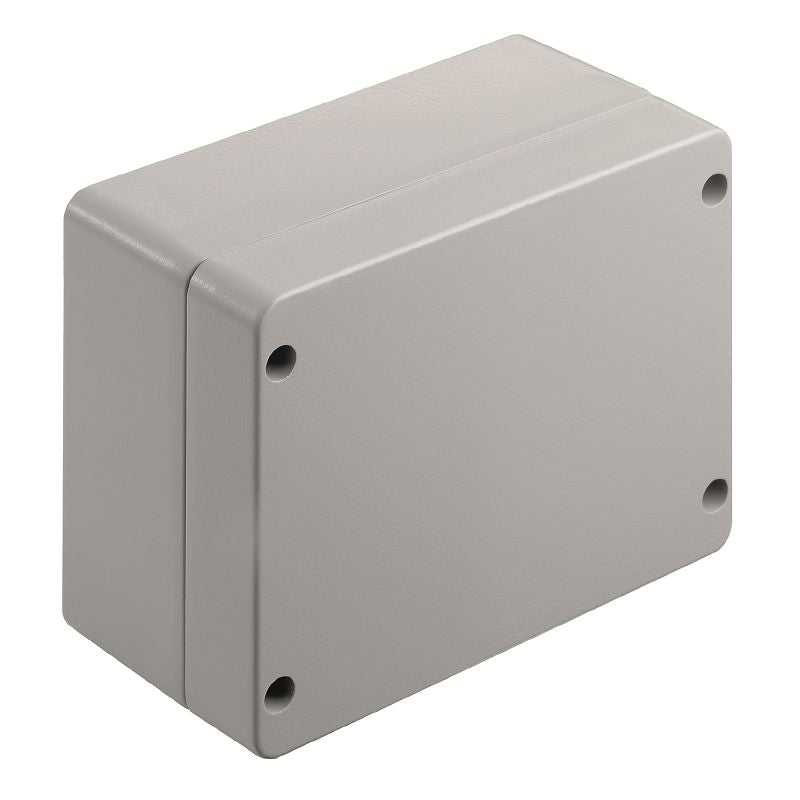

9529240000 - Aluminium KLIPPON K6 Enclosure 160mm x 200mm x 100mm RAL7001

SKU: SKU: 9529240000 Download PDF

Select a Variant:

9529240000 - Aluminium KLIPPON K6 Enclosure 160mm x 200mm x 100mm RAL7001

SET THE QTY:

Now $139.79 Web pricing policy

~~BEFORE $0.00~~ Now $139.79 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the KLIPPON K6 RAL7001, a premium empty aluminum enclosure tailored for your needs With dimensions of 160 mm in height, 200 mm in width, and 100 mm in depth, this enclosure is perfectly sized for various applications It boasts a sophisticated textured powder-coated finish in silver grey, crafted from high-quality Aluminium AlSi12 Fully compliant with RoHS regulations, it also holds several certification numbers that affirm its quality and safety.

Features and Benefits:

•Compliant without exemption to RoHS.

•10 J impact resistance.

•Integrated fixing with threaded holes M5.

•Lid attached with M5 torx stainless steel screws.

•Powder-coated textured surface.

•Process industry.

•Transportation.

•Marine engineering.

•Packaging industry.

•Harbour facilities.

•Machine construction.

Specifications:

Operating temperature (max)	80 °C
Operating temperature (min)	-40 °C
Basic material	Aluminium AlSi12
Max. payload	3.2 kg
Protection class	IP66, IP67, IP68
Protection class (UL)	Type 4, Type 4X
Material thickness of cover	3 mm
Material thickness of enclosure	4.6 mm
Access opening: height	150.8 mm
Access opening: width	190.8 mm
Cable glands, left	M12 6, M16 6, M20 3, M25 2, M32 2, M40 1
Cable glands, right	M12 6, M16 6, M20 3, M25 2, M32 2, M40 1
Cable glands, top/bottom	M12 17, M16 12, M20 7, M25 4, M32 3, M40 2
Seal material	Chloroprene
Torque for lid screws	2.5 Nm
