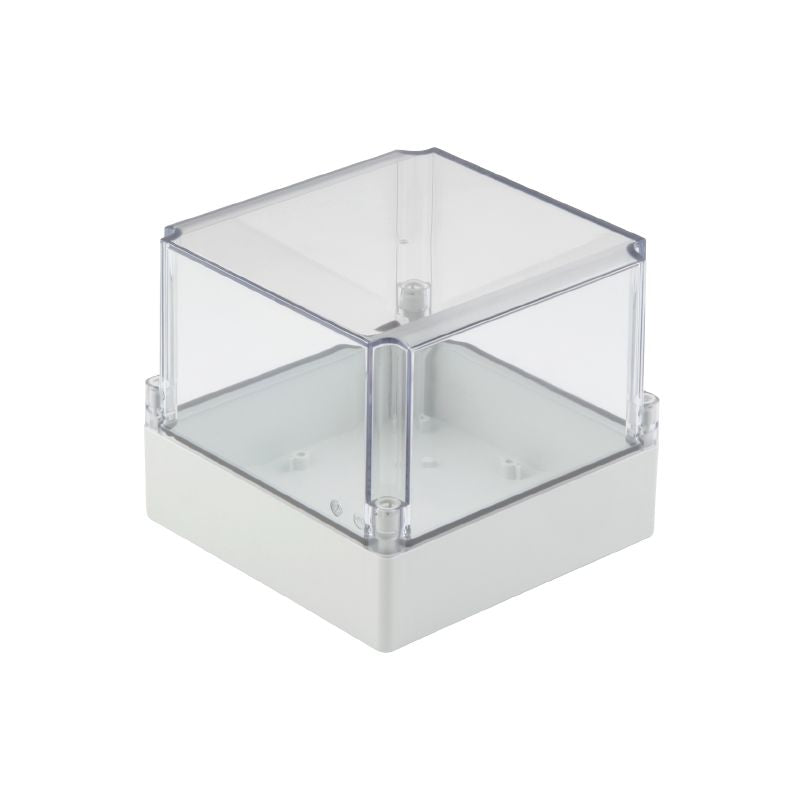

9535260000 - Polycarbonate Enclosure 125mm, IP66/IP67, for Versatile Use (Pack of 12)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the MPC, a versatile polycarbonate empty enclosure tailored for a variety of uses With dimensions of 125 mm in height, 125 mm in width, and 100 mm in depth, this enclosure is crafted from untreated light grey transparent polycarbonate It adheres to RoHS standards and contains no SVHC substances exceeding the 01 wt% limit Weighing in at just 31 g, it can withstand temperatures ranging from -50 °C to 130 °C.

Its robust design boasts IP66 and IP67 ratings, making it suitable for diverse environmental conditions.

Features and Benefits:

•Light Grey, Transparent color.

•Accessible opening dimensions: 121.5 mm height and 121.5 mm width.

•Made from untreated polycarbonate.

•Impact resistance rated at IK08.

•Enclosure attachment features holes of 4.5 mm.

•Lid attachment secured with 4 polyamide crosshead screws.

•Self-tapping screws for integral fixing.

•Screws can be tightened to a torque of 0.8 Nm.

•Building systems and technology.

•Transportation.

•Packaging industry.

•Machine construction.

Specifications:
