9526910000 - Durable Aluminium Enclosure 82mm x 130mm for Extreme Conditions

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

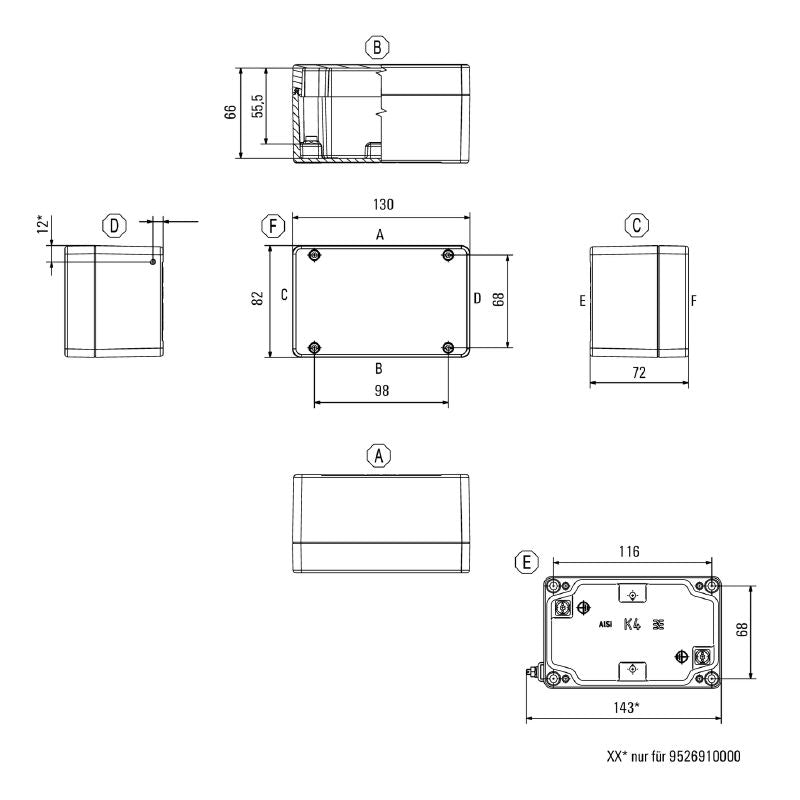

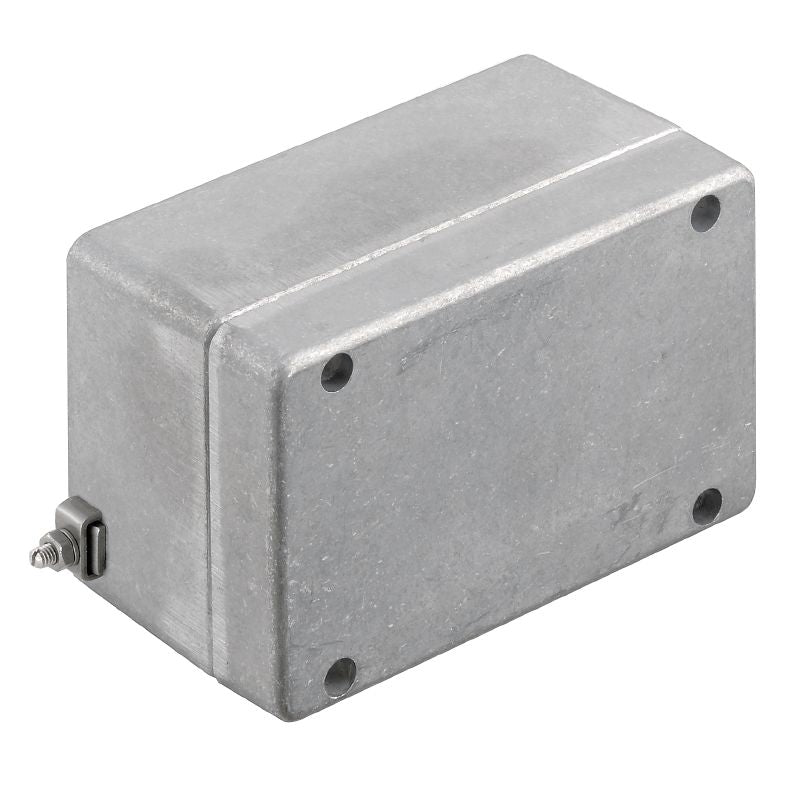

Discover the KLIPPON K4 EX enclosure, expertly crafted from untreated aluminium Measuring 82 mm in height, 130 mm in width, and 72 mm in depth, this enclosure is fabricated from Aluminium AlSi12 and adheres to RoHS standards It boasts multiple options for cable glands—M12, M16, M20, M25, and M32—located on both the left and right sides for versatile connectivity Rated for extreme temperatures from -60 °C to 135 °C, it also offers an impact resistance of 7 J in the ATEX version.

With an impressive protection rating of IP66 and IP67, it's designed to thrive in demanding environments, making it suitable for use in explosive risk zones, marine applications, and the packaging industry.

Features and Benefits:

•Compliant with RoHS regulations.

•Suitable for explosive risk zones.

•Certified under multiple standards including ATEX and IECEx.

•Constructed from durable aluminium AlSi12.

•High protection degree of IP66 and IP67.

•Available in various cable gland configurations.

•Resistance to extreme temperatures.

•Explosive risk zones.

•Process industry.

•Transportation.

•Packaging industry.

•Marine engineering.

•Machine construction.

•Harbour facilities.

Specifications:
