9535480000 - 175mm x 250mm Polycarbonate Enclosure, IK08 Rated

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

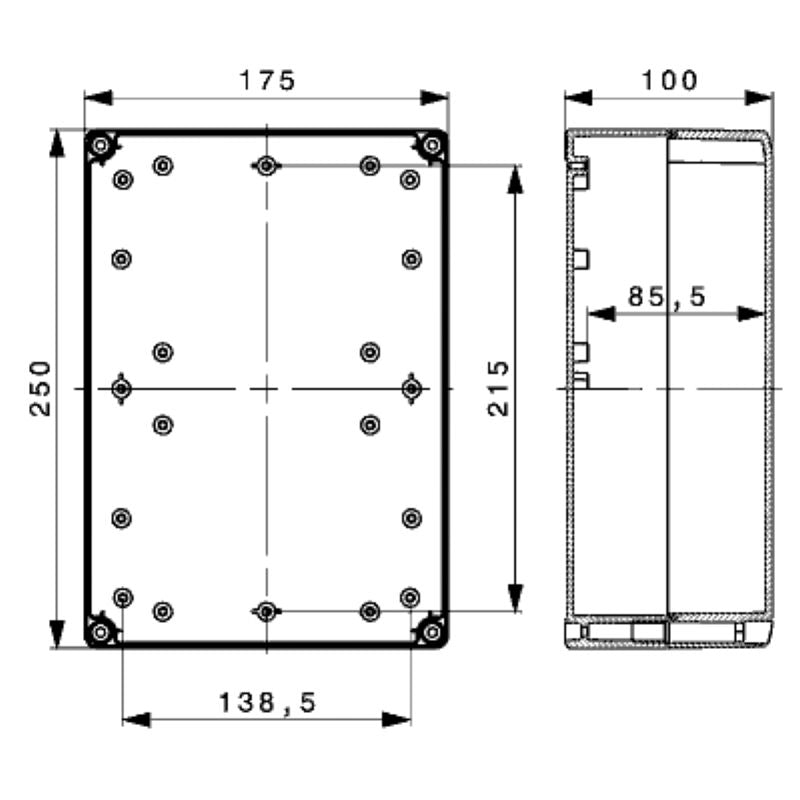

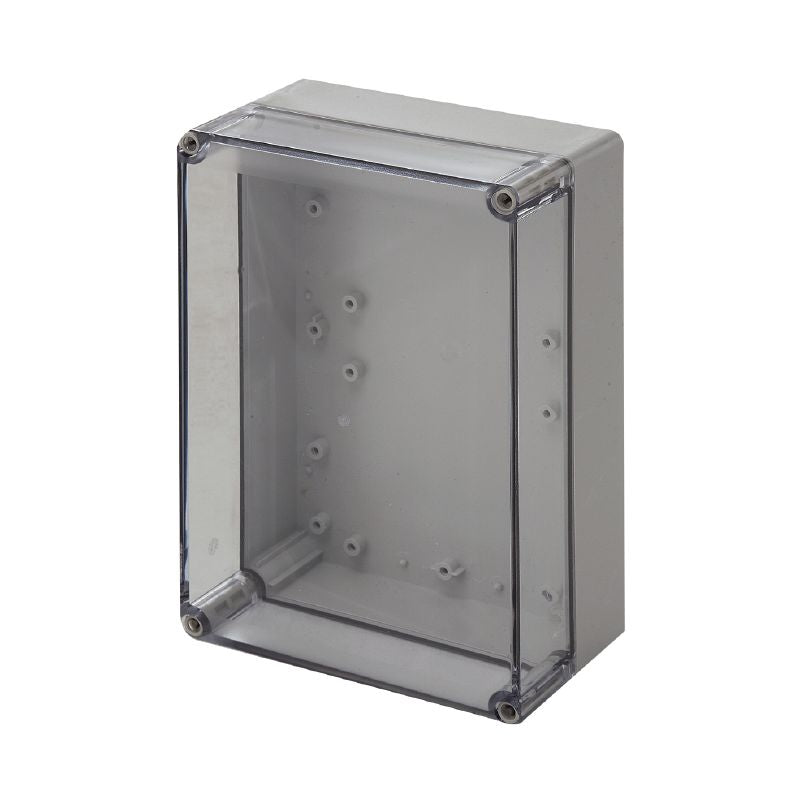

Discover the versatility of the MPC enclosure, crafted from high-quality untreated polycarbonate with a light grey transparent appearance Measuring 175 mm in height, 250 mm in width, and 100 mm in depth, this empty enclosure provides ample space for various applications The access opening is designed at 1715 mm high and 2465 mm wide, making it easy to manage internal components This product is fully ROHS compliant and adheres to stringent environmental regulations, ensuring that it contains no SVHC above 0.

1 wt% The enclosure accommodates M12, M16, and M20 cable glands, allowing for multiple connectivity options With an IK08 impact resistance rating, it offers robust durability, capable of withstanding temperatures between -50 °C and +130 °C Installation is straightforward, featuring screw mounting with self-tapping screws for secure assembly and a lid held in place with four polyamide crosshead screws.

The MPC enclosure is an excellent choice for those requiring a durable and compliant solution.

Features and Benefits:

•Impact resistance rating of IK08.

•Screw mounting installation with integral fixing.

•Light grey transparent finish.

•Enclosure attachment holes of 4.5 mm.

•Building systems and technology.

•Transportation.

•Packaging industry.

•Machine construction.

Specifications:
