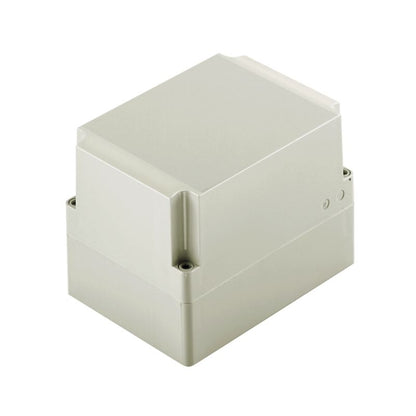

9535220000 - IP66/IP67 Polycarbonate Enclosure 75mm x 125mm x 125mm

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the MPC polycarbonate empty enclosure, designed with versatility in mind With dimensions of 75 mm in height, 125 mm in width, and 125 mm in depth, this enclosure is made from untreated polycarbonate, featuring a modern light grey and transparent finish Weighing in at 301 grams, it operates effectively in a temperature range from -50 °C to 130 °C This product is fully compliant with RoHS regulations and contains no SVHC materials exceeding 0.

1 wt% The enclosure provides multiple cable entry options equipped with glands suitable for M12, M16, and M20 sizes, adaptable to various configurations With an impressive IP66 and IP67 rating, rest assured your components are well-protected Installation is straightforward, requiring secure fastening with the included four polyamide crosshead screws Perfect for your project needs!.

Features and Benefits:

•Constructed from untreated polycarbonate.

•Impact resistance rated at IK08.

•Integral fixing provided by self-tapping screws.

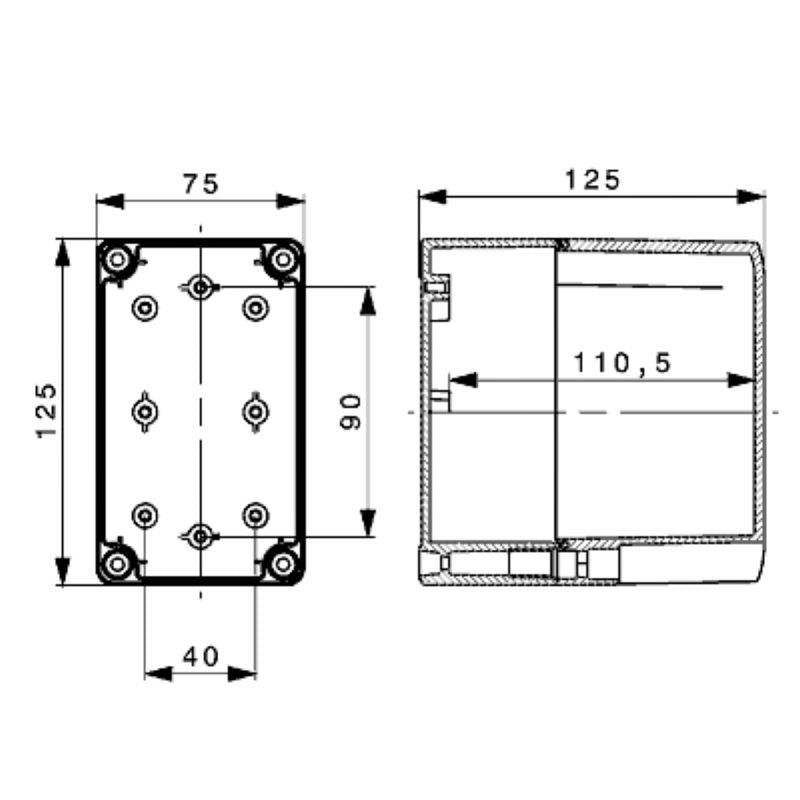

•Access openings with a height of 71.5 mm and width of 121.5 mm.

•Included lid secured by four screws.

•Building systems and technology.

•Transportation.

•Packaging industry.

•Machine construction.
