9526990000 - 230mm Aluminum Enclosure for Varied Conditions

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

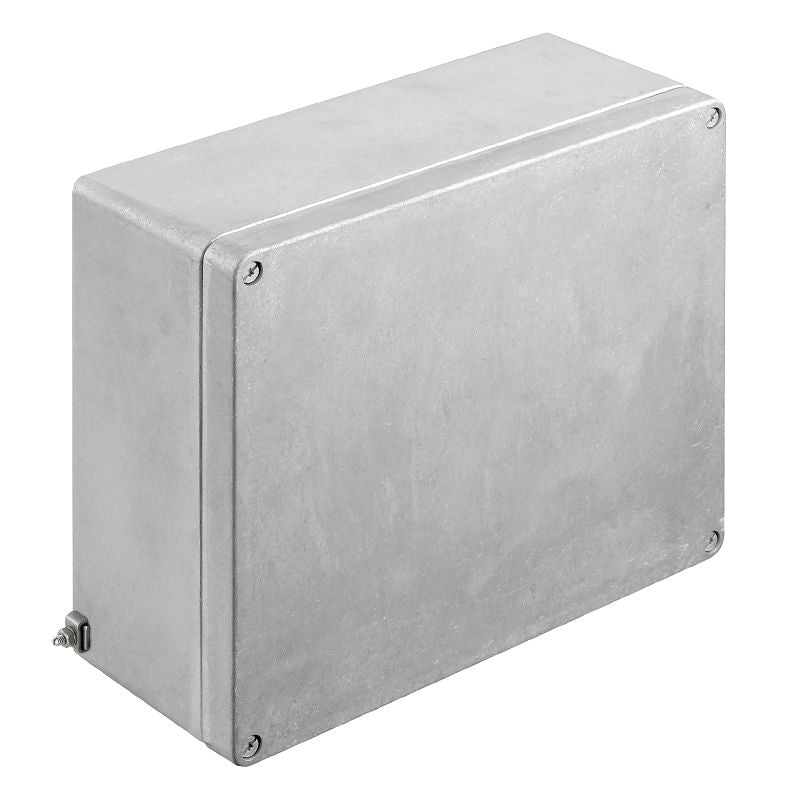

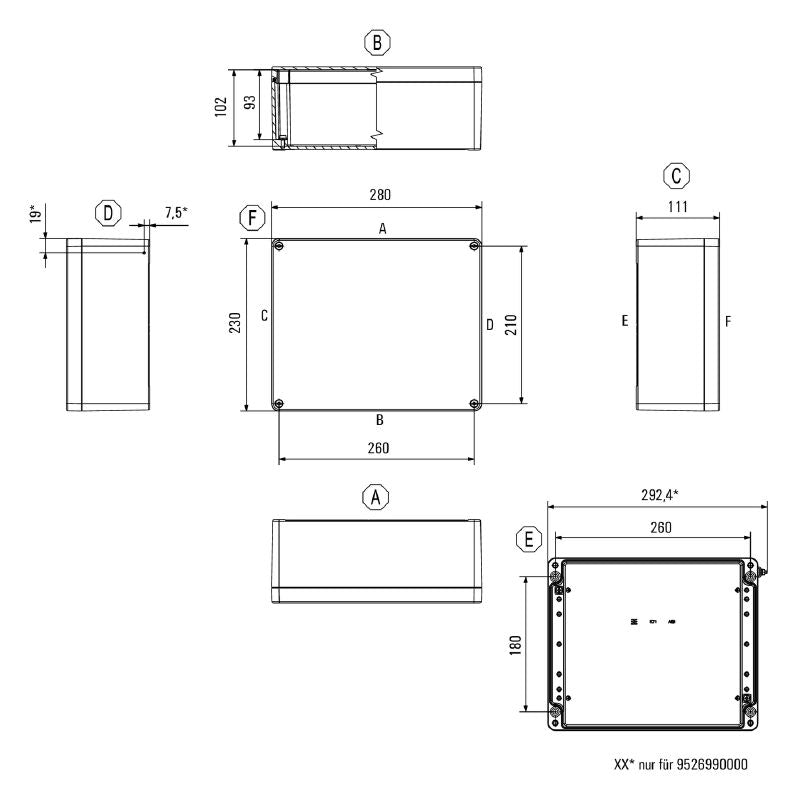

Introducing the KLIPPON K71 EX, a versatile empty enclosure crafted from untreated aluminum AlSi12 With dimensions of 230 mm in height, 280 mm in width, and 111 mm in depth, this enclosure is engineered to withstand diverse environmental conditions, featuring an impressive operating temperature range from -60 °C to 135 °C Compliant with RoHS guidelines, it is an excellent choice for various applications, including those in explosive risk zones and process industries, offering reliable protection and functionality.

Features and Benefits:

•Material is untreated aluminum AlSi12.

•Impact resistance rated at 7 J for ATEX version.

•Protection degree IP66 and IP67.

•Access opening dimensions: height 221 mm, width 271 mm.

•Integral fixing with M5 threaded holes.

•Lid included with M6 torx stainless steel screws for attachment.

•Six mounting holes of 6 mm available for enclosure attachment.

•Explosive risk zones.

•Process industry.

•Transportation.

•Packaging industry.

•Marine engineering.

•Machine construction.

•Harbour facilities.

Specifications:
