9535370000 - Light Grey Polycarbonate Enclosure 175mm x 175mm x 75mm

9535370000 - Light Grey Polycarbonate Enclosure 175mm x 175mm x 75mm

SKU: SKU: 9535370000 Download PDF

Variant:
  • 9535370000 - Light Grey Polycarbonate Enclosure 175mm x 175mm x 75mm
Regular price Now $55.14
Regular price BEFORE   $0.00 Sale price Now $55.14
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the MPC, a durable empty enclosure crafted from untreated polycarbonate With dimensions of 175 mm in height, 175 mm in width, and 75 mm in depth, this light grey enclosure is perfect for various applications Its robust material offers reliability and versatility for your needs.

Features and Benefits:

    •RoHS compliant without exemption.

    •Impact resistance IK08.

    •Screw mounting with integral fixing using self-tapping screws.

    •Includes a lid attached with 4 polyamide crosshead screws.

    •Offers excellent protection degree IP66 and IP67.

    •Environmental Product Compliance.

    •Included areas of use are building systems and technologies, transportation, packaging industry, and machine construction.

    •Building systems and technology.

    •Transportation.

    •Packaging industry.

    •Machine construction.

Specifications:

 Operating temperature -50 °C to 130 °C
 Access opening height 171.5 mm
 Access opening width 171.5 mm
 Material thickness 3.5 mm
 Seal material Polyurethane
 Torque for lid screws 0.8 Nm
 Cable glands (right) M12: 6, M16: 4
 Cable glands (top/bottom) M12: 6, M16: 4, M20: 4

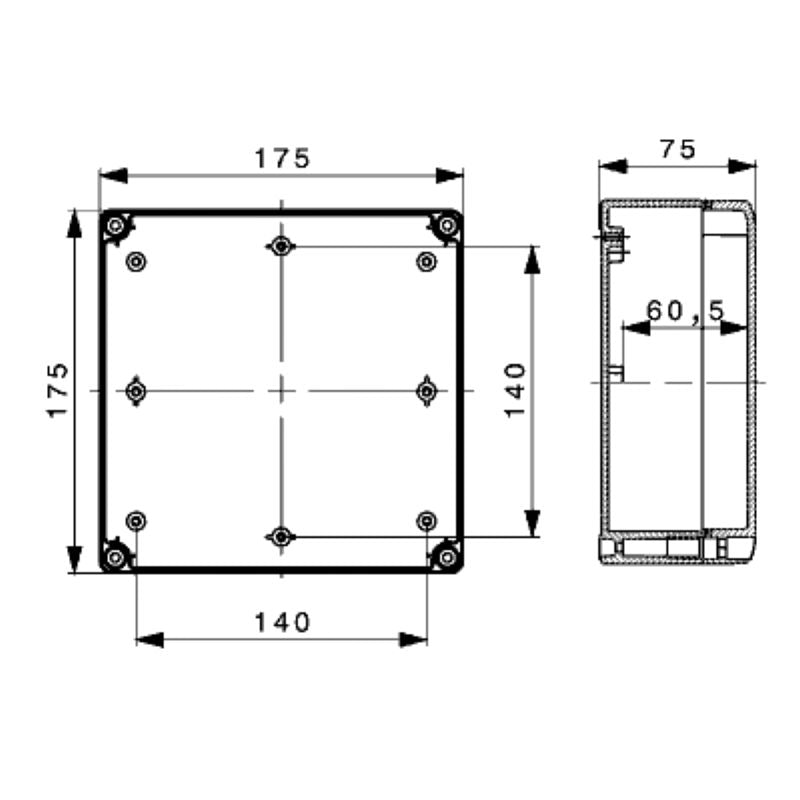

 Dimensions Height: 175 mm, Width: 175 mm, Depth: 75 mm
 Net weight 472 g
