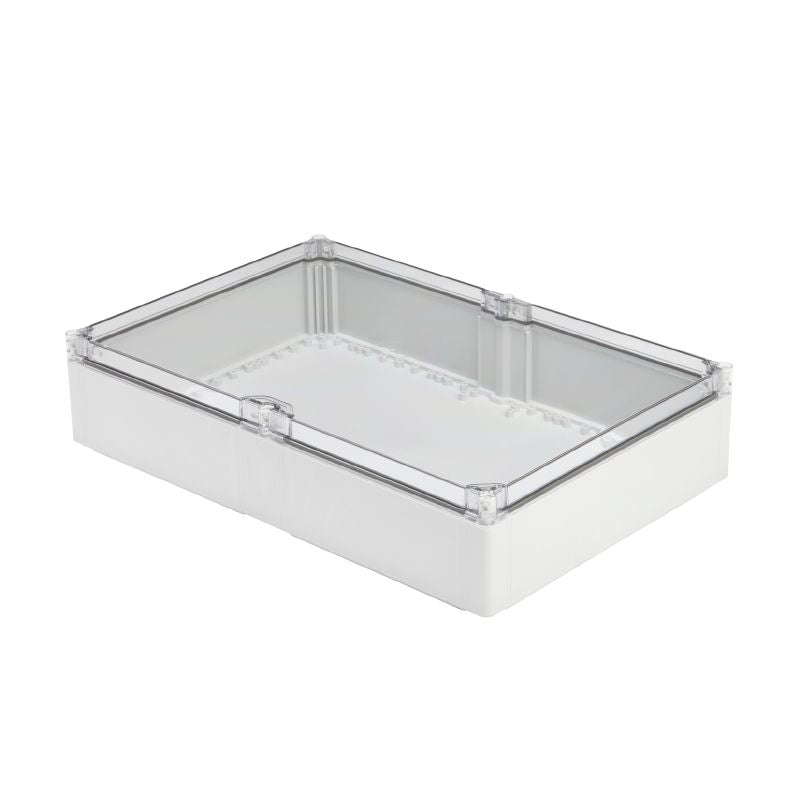

9535820000 - Light Grey Polycarbonate Enclosure 400x600x132 mm

9535820000 - Light Grey Polycarbonate Enclosure 400x600x132 mm

SKU: 9535820000   Download PDF

Select a Variant:
  • 9535820000 - Light Grey Polycarbonate Enclosure 400x600x132 mm
Qty:
Now $409.70   Web pricing policy
BEFORE   $0.00 Now $409.70 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

The FPC empty enclosure is constructed from untreated polycarbonate and features a sleek design with dimensions of 400 mm in height, 600 mm in width, and 132 mm in depth Available in a light grey and transparent finish, this versatile enclosure is designed for a range of applications It adheres to RoHS standards and contains no SVHC above 01 wt%, ensuring compliance and safety.

Features and Benefits:

    •Compliant with RoHS regulations.

    •Light grey and transparent design.

    •Integral fixing using self-tapping screws.

    •Impact resistance rated at IK08.

    •Building systems and technology.

    •Transportation.

    •Packaging industry.

    •Machine construction.

Specifications:

 Depth 132 mm
 Height 400 mm
 Width 600 mm
 Net weight 4,500 g
 Operating temperature -50 °C to 130 °C
 Protection degree IP66/IP67
 Lid attachment 4 polyamide crosshead screws
 Material thickness 3.5 mm
 Seal material Polyurethane
 Torque for lid screws 0.8 Nm
 Access opening height 396.5 mm
 Access opening width 595.5 mm
