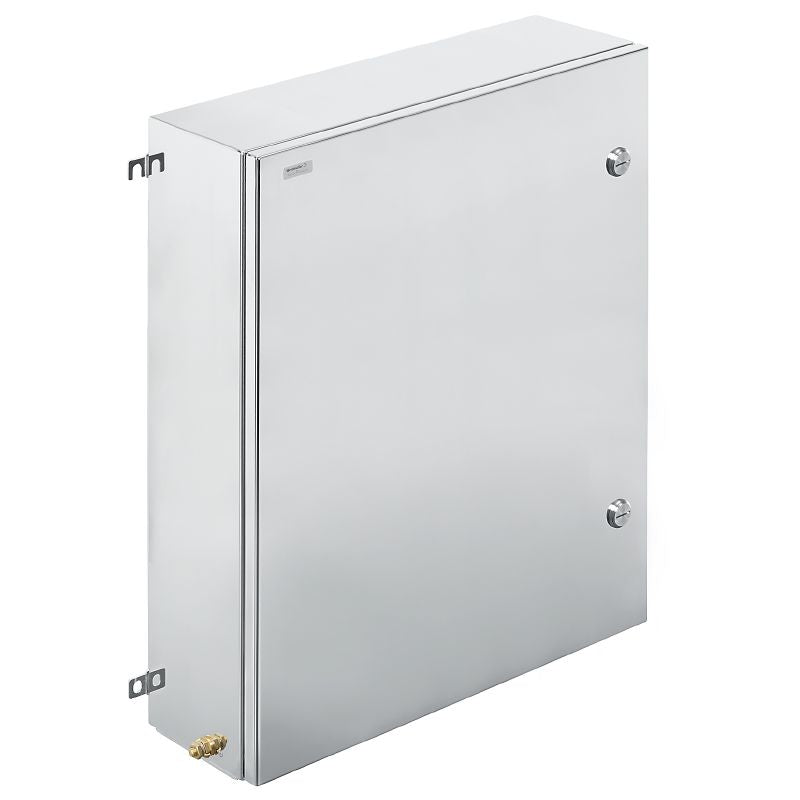

8000109924 - 760mm Stainless Steel Terminal Box, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the KTB QL (Terminal Box - Quarter Lock), a robust empty enclosure tailored for your needs With dimensions of 760 mm in height, 620 mm in width, and 200 mm in depth, this box is crafted from electropolished stainless steel 14404 (316L) featuring a sophisticated silver finish It withstands a wide temperature range from -60 °C to 135 °C, although it is important to note the IP66 protection rating is limited if the temperature exceeds 105 °C.

Additionally, the enclosure meets RoHS compliance standards, making it a reliable choice for various applications.

Features and Benefits:

•Constructed from electropolished stainless steel 1.4404 (316L).

•IP66 and IP67 rated for protection against dust and water.

•Integral fixing using 4, 6 or 9 M6 inner thread bolts.

•Lid with 4 hinges and slotted screws for easy access.

•Sealed with silicone materials for effective sealing.

•Available for use in explosive risk zones, process industry, oil and gas industry, chemical industry, offshore, and onshore applications.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:
