8000108847 - Stainless Steel Terminal Box, 508mm x 406mm x 150mm, Polished Finish

SKU: SKU: 8000108847 Download PDF

Select a Variant:

8000108847 - Stainless Steel Terminal Box, 508mm x 406mm x 150mm, Polished Finish

SET THE QTY:

Now $1,981.20 Web pricing policy

~~BEFORE $0.00~~ Now $1,981.20 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

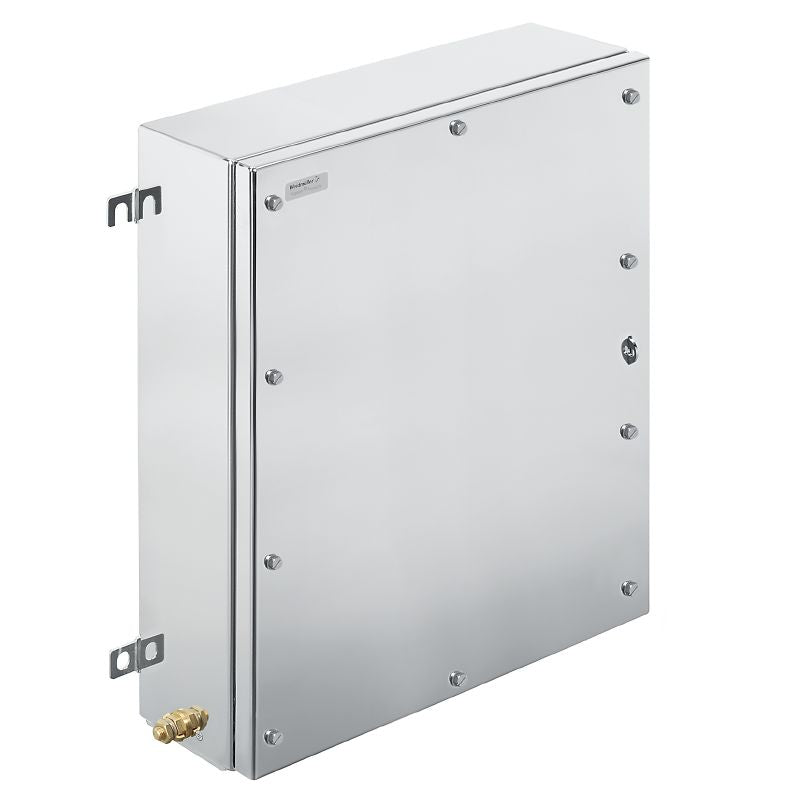

Introducing the KTB MH Terminal Box, a secure and practical stainless steel enclosure designed for versatility With dimensions measuring 508 mm in height, 406 mm in width, and 150 mm in depth, this enclosure is both spacious and functional Crafted from high-quality stainless steel (14404 grade, 316L), it boasts a polished surface that adds a touch of elegance The unit is equipped with gland plates at the bottom and includes four sturdy mounting feet for easy installation.

Fully compliant with RoHS regulations and backed by several safety certifications, this terminal box guarantees reliability and adherence to global standards.

Features and Benefits:

•Constructed from stainless steel 1.4404 (316L).

•Electropolished surface finish.

•Includes gland plates at the bottom.

•Four welded mounting feet for easy installation.

•Impact resistance up to 10 J.

•Protection degree IP66 and IP67 for various applications.

Specifications:

Height	508 mm
Width	406 mm
Depth	150 mm
Net weight	13.125 kg
Operating temperature	-60 °C to 135 °C
Material thickness of cover	1.5 mm
Material thickness of enclosure	1.5 mm
Material thickness of flange	3 mm
Protection class	Type 3, Type 4X, Type 12
Seal material	Silicone
Approval conditions	ATEX, IECEX, INMETRO, cULus
Torque for lid screws	2.5 Nm
