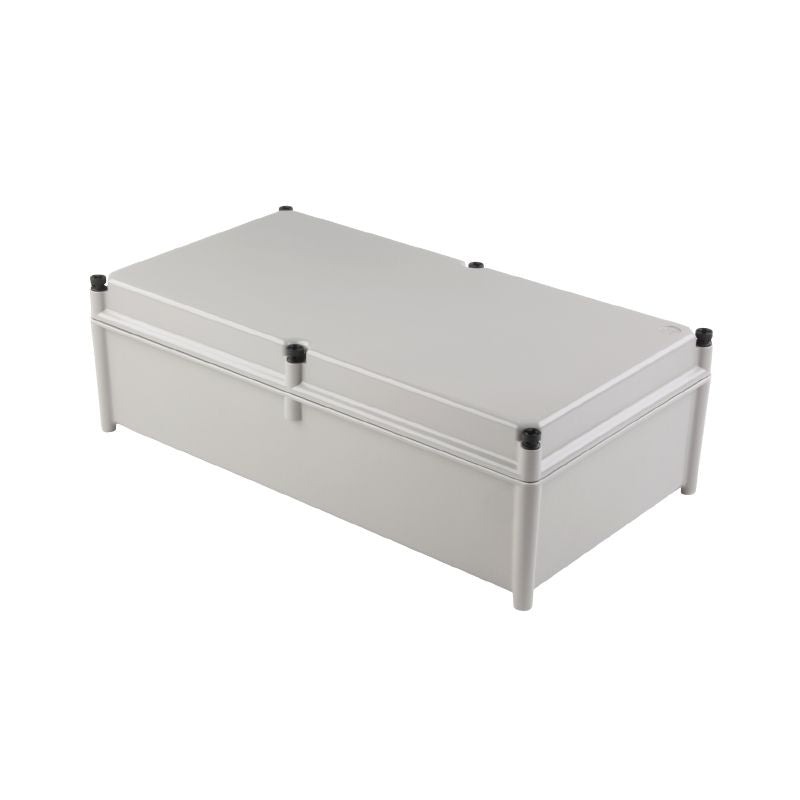

9502810000 - Light Grey Polyester Enclosure, 558mm x 302mm x 175mm

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the TBF polyester empty enclosure, a versatile solution for a wide range of applications such as system building, transportation, packaging, and machine construction With dimensions of 558 mm in height, 302 mm in width, and 175 mm in depth, this enclosure is crafted from untreated glass fibre-reinforced polyester, finished in an attractive light grey color It meets RoHS compliance standards and has a net weight of 4,320 g, ensuring both safety and durability for your projects.

Features and Benefits:

•Compliant with RoHS without exemption.

•Free from halogens and has UL 94 flammability rating HB.

•Built for screw mounting with integral fixing.

•Includes a lid with crosshead nylon screws and six screws in total.

•Equipped with an access opening that measures 532 mm in height and 276 mm in width.

•Protection degree IP67 for dust and water resistance.

•Impact resistance rated IK08 and IK10.

•Building systems and technology.

•Transportation.

•Packaging industry.

•Machine construction.

Specifications:
