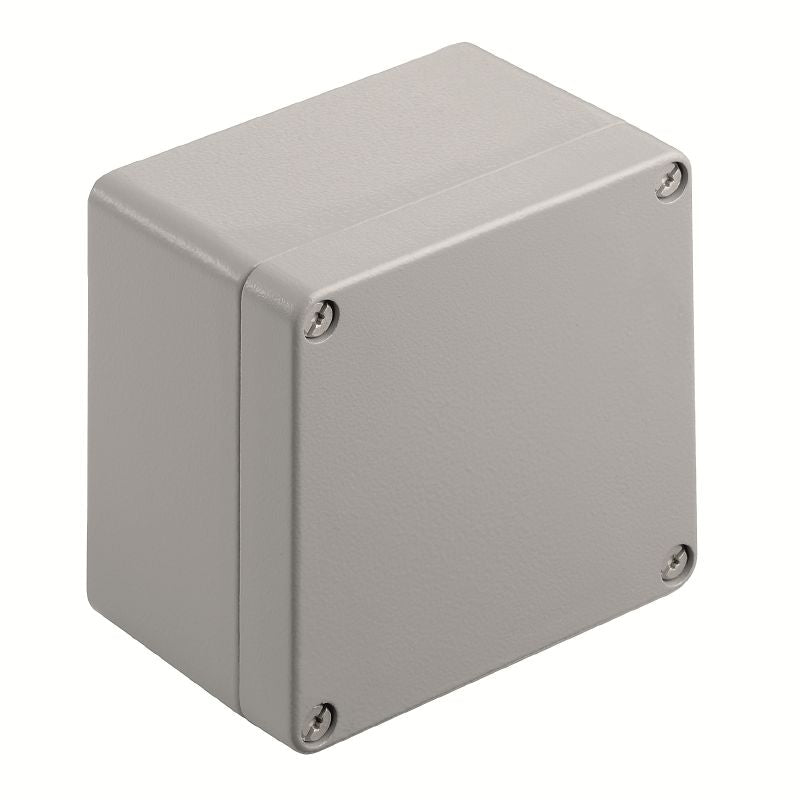

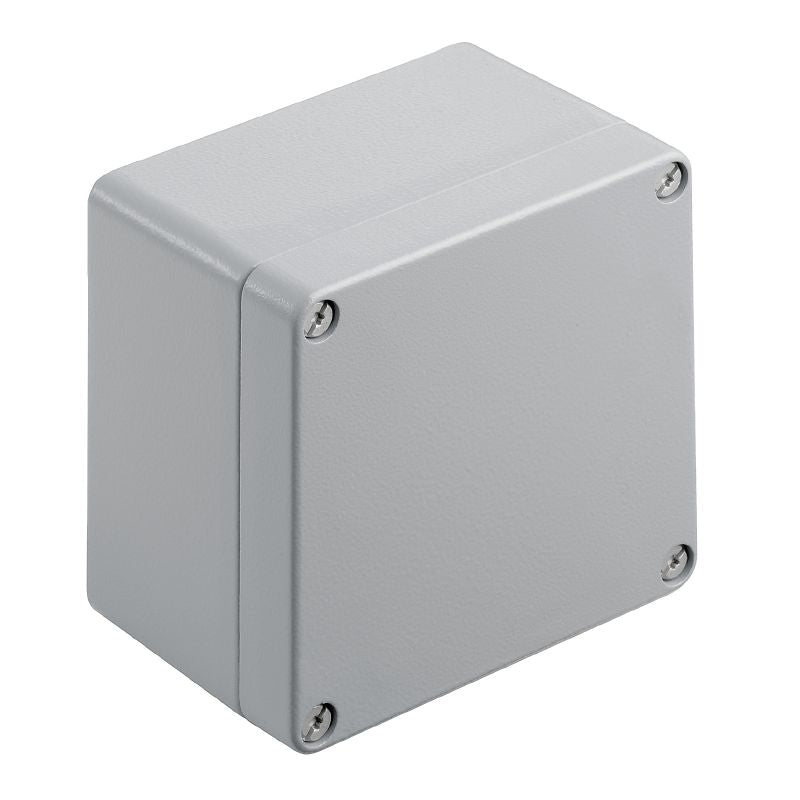

9529200000 - Silver Grey 120mm Aluminium Enclosure K41, RoHS Compliant

9529200000 - Silver Grey 120mm Aluminium Enclosure K41, RoHS Compliant

SKU: SKU: 9529200000 Download PDF

Variant:
  • 9529200000 - Silver Grey 120mm Aluminium Enclosure K41, RoHS Compliant
Regular price Now $83.87
Regular price BEFORE   $0.00 Sale price Now $83.87
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Klippon K41, a versatile empty enclosure crafted from premium aluminium alloy AlSi12 Measuring 120 mm in height, 122 mm in width, and 81 mm in depth, this enclosure is perfect for a variety of applications Its elegant silver grey textured finish, achieved through powder-coating, not only enhances its appeal but also ensures compliance with RoHS standards This enclosure combines functionality with a modern aesthetic, making it an excellent choice for your project needs.

Features and Benefits:

    •Constructed from aluminium AlSi12.

    •Powder-coated textured finish in silver grey.

    •Operating temperature range from -40 °C to 80 °C.

    •Various cable glands options for flexible installation.

    •Process industry.

    •Transportation.

    •Marine engineering.

    •Packaging industry.

    •Harbour facilities.

    •Machine construction.

Specifications:

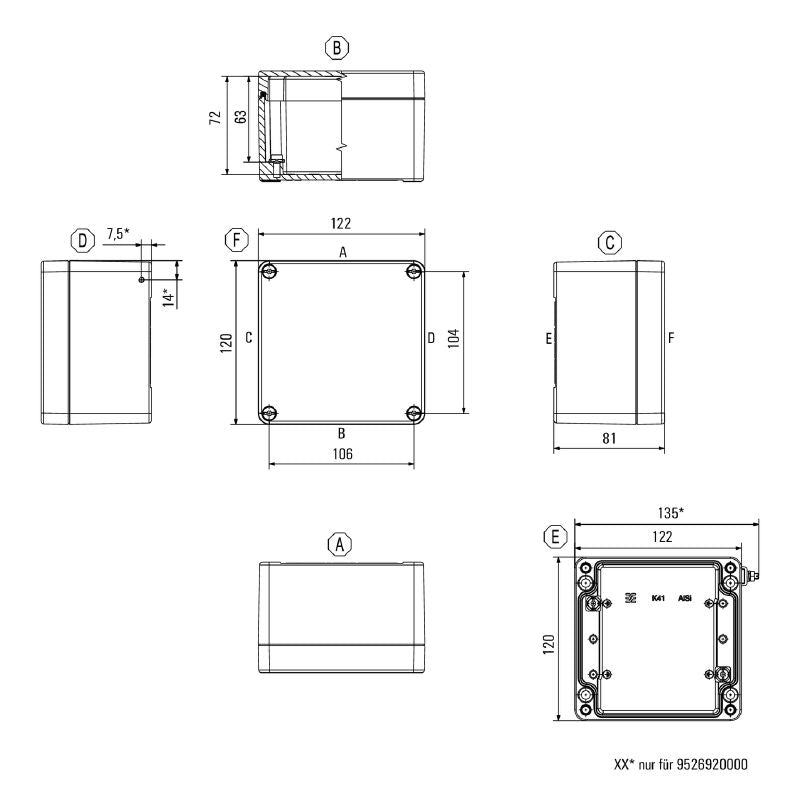

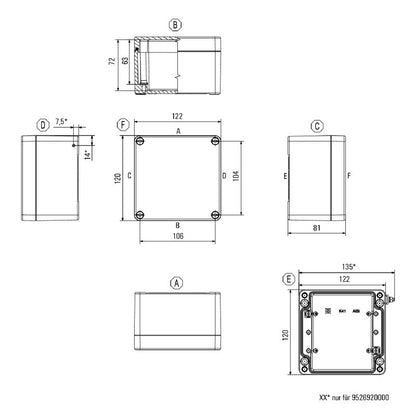

 Depth 81 mm
 Height 120 mm
 Width 122 mm
 Net weight 955 g
 Material thickness of cover 4 mm
 Material thickness of enclosure 4.5 mm
 Max. payload 1.464 kg
 Protection class IP68
 Operating temperature, max. 80 °C
 Operating temperature, min. -40 °C
 Torque for lid screws 2.5 Nm
 Seal material Chloroprene
