8000108839 - 350x350mm Stainless Steel Terminal Box, Electropolished Finish

SKU: SKU: 8000108839 Download PDF

Select a Variant:

8000108839 - 350x350mm Stainless Steel Terminal Box, Electropolished Finish

SET THE QTY:

Now $2,118.90 Web pricing policy

~~BEFORE $0.00~~ Now $2,118.90 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

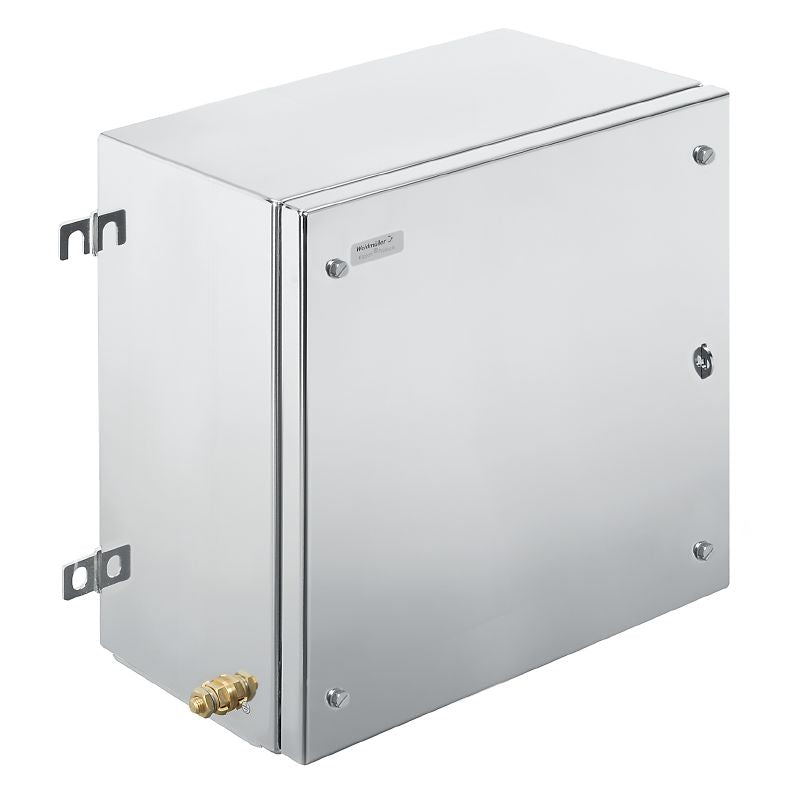

Introducing the Klippon TB MH, a premium enclosure ideal for terminal box applications Crafted from high-grade stainless steel (14404, 316L), this robust enclosure boasts a stunning electropolished silver finish Measuring 350 mm in height, 350 mm in width, and 200 mm in depth, it is designed with gland plates strategically located at the bottom, left, and right sides for optimum utility Additionally, the enclosure supports various cable glands and offers versatile mounting options, making installation straightforward and efficient.

Features and Benefits:

•Constructed from stainless steel 1.4404 (316L).

•Electropolished surface finish.

•Multi hinge design for improved access.

•Mounting feet with slotted holes for easy installation.

•Protection rating of IP66/IP67.

•Operating temperature range from -60 °C to 135 °C.

Specifications:

Height	350 mm
Width	350 mm
Depth	200 mm
Net weight	12,110 g
Operating temperature	-60 °C...135 °C
Protection class	Type 3, Type 4X, Type 12
Protection degree	IP66, IP67
Material thickness of cover	1.5 mm
Material thickness of enclosure	1.5 mm
Material thickness of flange	3 mm
Gland plates	Bottom, left, right
Impact resistance	10 J version standard
Lid attachment	4 hinges and M6 hex-head slotted screws SW10
Seal material	Silicone
