8000108870 - Stainless Steel Terminal Box 760mm x 620mm x 200mm

SKU: SKU: 8000108870 Download PDF

Select a Variant:

8000108870 - Stainless Steel Terminal Box 760mm x 620mm x 200mm

SET THE QTY:

Now $3,608.38 Web pricing policy

~~BEFORE $0.00~~ Now $3,608.38 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

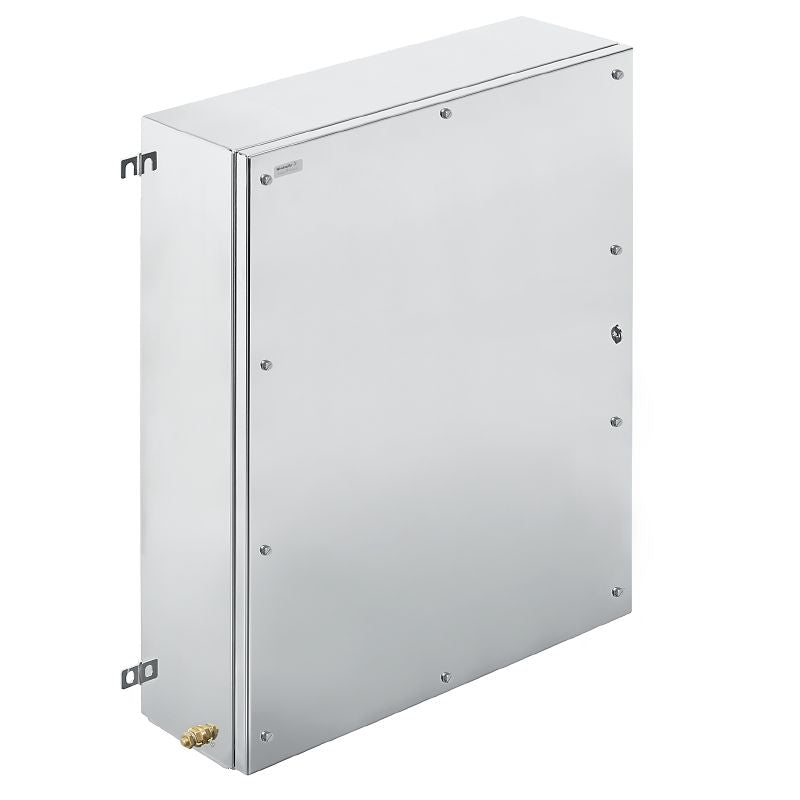

Introducing the Klippon TB MH (Terminal Box - Multi Hinge), an unfilled enclosure crafted from premium stainless steel With dimensions measuring 760 mm in height, 620 mm in width, and 200 mm in depth, this enclosure stands out with its electropolished finish (14404, 316L) that boasts a sophisticated silver color Designed to withstand a wide operating temperature range from -60 °C to 135 °C, it delivers reliable performance, although its IP66 protection rating is only applicable at temperatures up to 105 °C.

Perfect for various industrial applications, this enclosure combines durability with functionality.

Features and Benefits:

•Enclosure made of stainless steel 1.4404 (316L).

•Electropolished finish.

•Includes 4 welded-on mounting feet.

•Impact resistance rated at 10 J.

•Sealed with silicone material.

Specifications:

Depth	200 mm
Height	760 mm
Width	620 mm
Net weight	23,140 g
Operating temperature, max	135 °C
Operating temperature, min	-60 °C
Protection degree	IP66, IP67
Material thickness of cover	1.5 mm
Material thickness of enclosure	1.5 mm
Material thickness of flange	3 mm
Torque for lid screws	2.5 Nm
Seal material	Silicone
Approval conditions	ATEX, IECEX, INMETRO, cULus
Standards	DIN EN 62208, DIN EN 61373 Class 1B, DIN EN 15085-2, EN 60079-0, EN 60079-7, EN 60079-31, IEC 60079-0, IEC 60079-7, IEC 60079-31
