8000108851 - Stainless Steel Multi Hinge Terminal Box, IP66, 508mm x 406mm x 200mm

SKU: SKU: 8000108851 Download PDF

Select a Variant:

8000108851 - Stainless Steel Multi Hinge Terminal Box, IP66, 508mm x 406mm x 200mm

SET THE QTY:

Now $2,814.61 Web pricing policy

~~BEFORE $0.00~~ Now $2,814.61 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

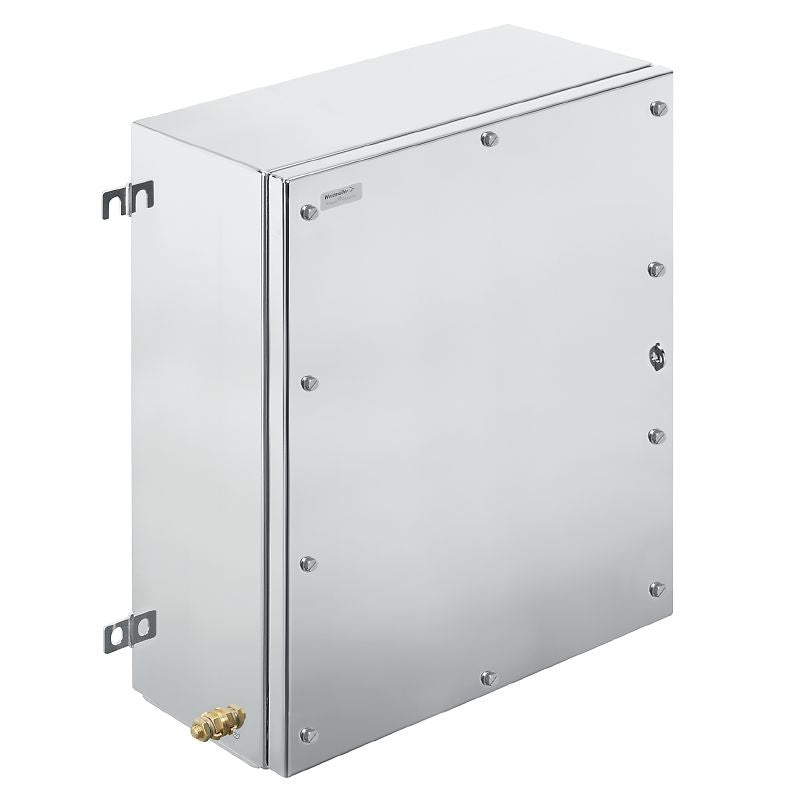

Introducing the KTB MH (Terminal Box - Multi Hinge), a versatile and robust enclosure crafted from high-grade stainless steel 14404 (316L) with a premium electropolished finish This enclosure measures 508 mm in height, 406 mm in width, and 200 mm in depth, making it an ideal solution for various applications Equipped with gland plates positioned at the bottom, left, and right, it ensures efficient cable management.

Designed to withstand extreme temperatures ranging from -60 °C to 135 °C, this enclosure meets RoHS compliance and boasts an IP66 protection rating under specific conditions, providing you with reliability and durability you can count on.

Features and Benefits:

•Constructed from stainless steel 1.4404 (316L), electropolished.

•Includes gland plates at the bottom, left, and right.

•Impact resistance rating of 10 J standard.

•Sealing material includes silicone for durability.

•Hinged lid for easy access.

•Mounting feet with 11 mm holes for secure installation.

Specifications:

Height	508 mm
Width	406 mm
Depth	200 mm
Operating temperature	-60 °C...135 °C
Impact resistance	10 J version standard
Protection degree	IP66, IP67
Material thickness of enclosure	1.5 mm
Material thickness of flange	3 mm
Seal material	Silicone
Standards	DIN EN 62208, DIN EN 61373 Class 1B, DIN EN 15085-2, IEC 60079-0, IEC 60079-7, IEC 60079-31
