Product Information

Description:

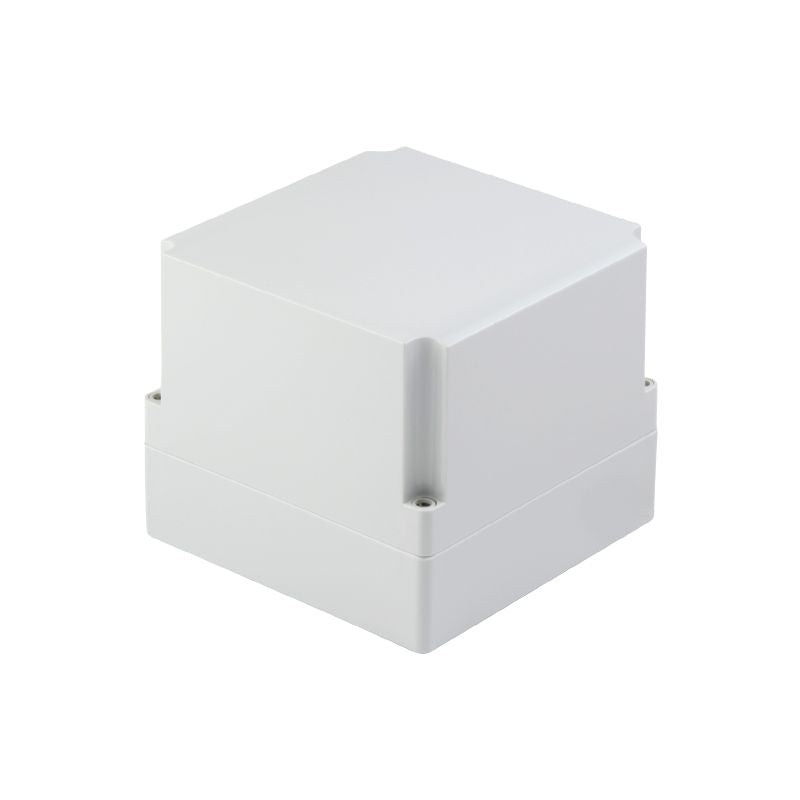

Introducing the MPC polycarbonate enclosure, a versatile solution crafted for a variety of applications Measuring 175 mm in both height and width, and 150 mm in depth, this empty enclosure is constructed from untreated polycarbonate with a modern light grey finish It adheres to RoHS standards, making it a responsible choice for technology and building systems, transportation, the packaging sector, and machine manufacturing.

Perfect for those looking for a reliable and compliant enclosure for diverse uses.

Features and Benefits:

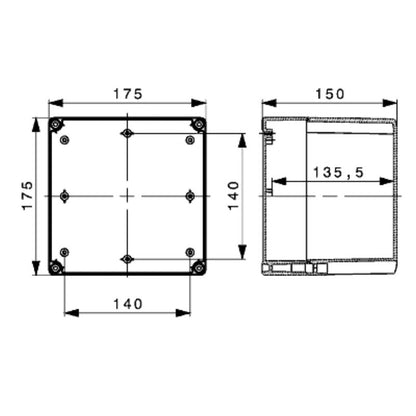

•Access opening dimensions: height 171.5 mm, width 171.5 mm.

•Impact resistance rating of IK08.

•Includes a lid fixed with four polyamide crosshead screws.

•Installation through screw mounting with self-tapping screws and integral fixing.

•Building systems and technology.

•Transportation.

•Packaging industry.

•Machine construction.

Specifications:

Depth	150 mm
Height	175 mm
Width	175 mm
Operating temperature	-50 °C to 130 °C
Protection degree	IP66, IP67
Seal material	Polyurethane
Material thickness	3.5 mm
Torque for lid screws	0.8 Nm
Cable glands (right)	{'M12': '6', 'M16': '4'}
Cable glands (top/bottom)	{'M12': '6', 'M16': '4', 'M20': '4'}
Certificate numbers enclosure	{'Declaration of Conformity No.': 'DoC DE PS2420 201008 001ISS00'}
Basic material	Polycarbonate
Flange plate	No
Installation advice	Screw mounting
Lid	Yes
Number of lid screws	4
