8000109894 - Stainless Steel Terminal Box 406mm for Harsh Environments

8000109894 - Stainless Steel Terminal Box 406mm for Harsh Environments

SKU: 8000109894   Download PDF

Select a Variant:
  • 8000109894 - Stainless Steel Terminal Box 406mm for Harsh Environments
Qty:
Now $1,881.87   Web pricing policy
BEFORE   $0.00 Now $1,881.87 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

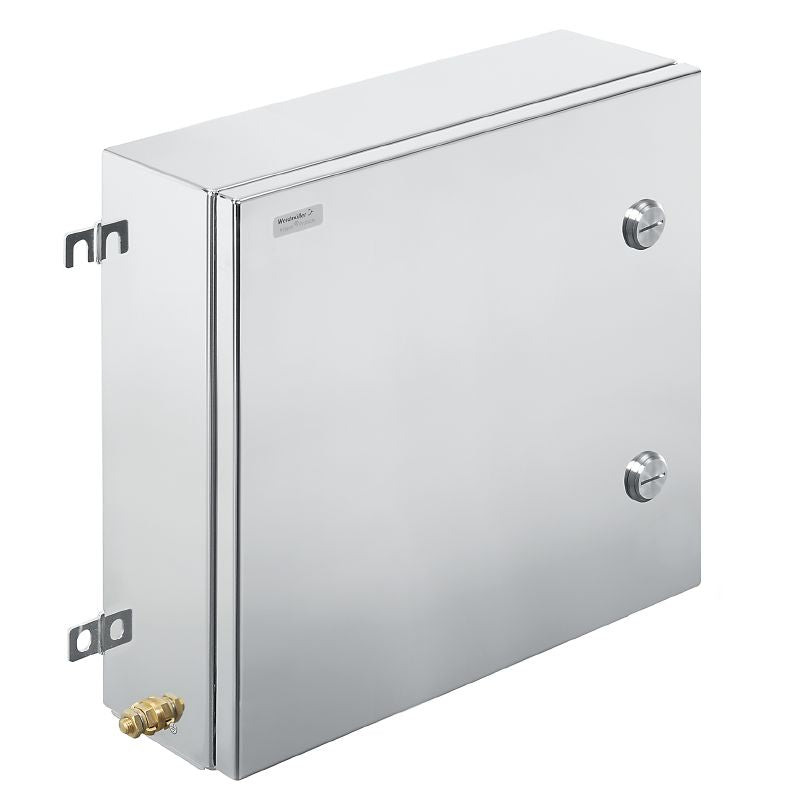

Introducing the KTB QL Terminal Box - Quarter Lock, a robust unfilled enclosure designed to meet demanding industrial standards Measuring 406 mm in height, 406 mm in width, and 150 mm in depth, this box is made from high-quality stainless steel 14404 (316L) and features a sleek electropolished silver finish With RoHS compliance, it is suitable for use in challenging environments such as oil, gas, chemical, and offshore sectors, particularly in areas with potential explosion risks.

This terminal box operates efficiently under a wide temperature range, from -60 °C to 135 °C, ensuring reliability in various conditions.

Features and Benefits:

    •Constructed from stainless steel 1.4404 (316L).

    •Electropolished finish.

    •Protection class IP66, IP67.

    •Impact resistance of 10 J according to IEC 60079-0.

    •Integral fixing with 4, 6, or 9 stud bolts M6.

    •Lid secured by 4 hinges and M6 hex-head slotted screws.

    •Sealed with silicone material.

    •Used in explosive risk zones.

    •Suitable for the process industry.

    •Applicable in oil and gas sector.

    •Designed for chemical industry usage.

    •Functional in offshore and onshore scenarios.

Specifications:

 Height 406 mm
 Width 406 mm
 Depth 150 mm
 Operating temperature (max) 135 °C
 Operating temperature (min) -60 °C
 Material thickness of cover 1.5 mm
 Material thickness of enclosure 1.5 mm
 Material thickness of flange 3 mm
 Seal material Silicone
 Protection class (UL) Type 3, Type 4X, Type 12
 Certificates {'ATEX': 'IBExU14ATEX1028 U', 'IECEx': 'IECEx IBE 14.0004U', 'INMETRO': 'LMP 21.0016U'}
 RoHS Compliance Status Compliant with exemption
 Standard compliance ['DIN EN 62208', 'DIN EN 61373 Class 1B', 'DIN EN 15085-2', 'EN 60079-0', 'EN 60079-7', 'EN 60079-31', 'IEC 60079-0', 'IEC 60079-7', 'IEC 60079-31']
