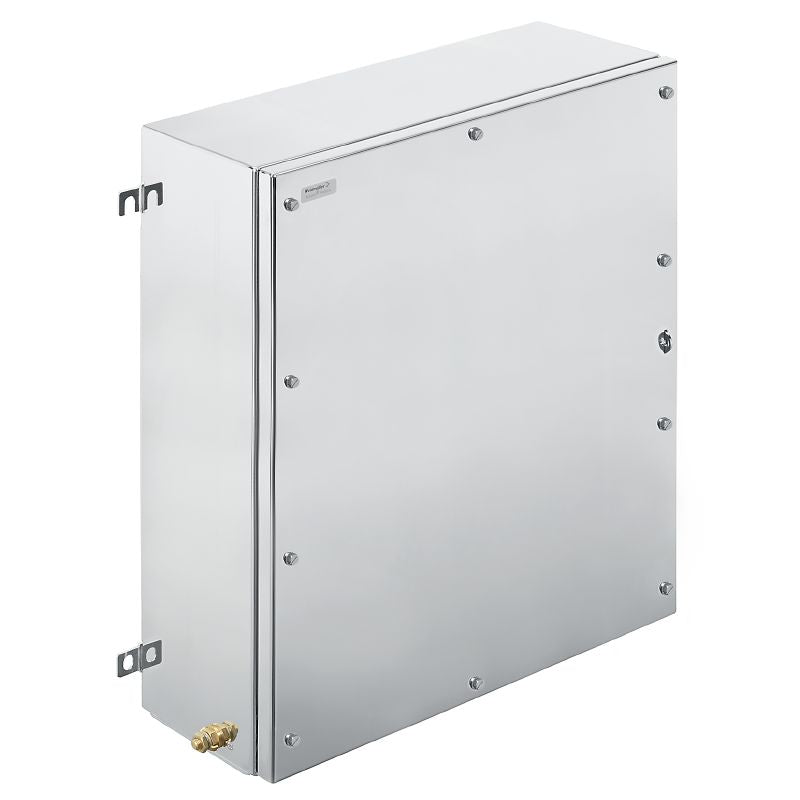

8000108860 - 620mm Stainless Steel Klippon Terminal Box with Gland Plates

8000108860 - 620mm Stainless Steel Klippon Terminal Box with Gland Plates

SKU: 8000108860   Download PDF

Select a Variant:
  • 8000108860 - 620mm Stainless Steel Klippon Terminal Box with Gland Plates
Qty:
Now $3,545.07   Web pricing policy
BEFORE   $0.00 Now $3,545.07 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Discover the versatility of the Klippon TB MH, a spacious empty enclosure crafted from high-grade stainless steel 14404 (316L) with a sleek electropolished finish With dimensions of 620 mm in height, 508 mm in width, and 200 mm in depth, this enclosure is designed to meet diverse housing needs It includes gland plates positioned at the bottom, left, and right for enhanced functionality Compliant with RoHS standards, it is an excellent choice for a variety of applications where corrosion resistance and durability are essential.

Features and Benefits:

    •Made of stainless steel 1.4404 (316L).

    •Electropolished finish for enhanced corrosion resistance.

    •IP66 and IP67 protection degree.

    •Wide operating temperature range from -60 °C to 135 °C.

    •Includes gland plates for bottom and sides.

Specifications:

 Height 620 mm
 Width 508 mm
 Depth 200 mm
 Net weight 22,500 g
 Operating temperature -60 °C to 135 °C
 Material thickness of cover 1.5 mm
 Material thickness of enclosure 1.5 mm
 Material thickness of flange 3 mm
 Protection class (UL) Type 3, Type 4X, Type 12
 Seal material Silicone
 Approval conditions ATEX, IECEX, INMETRO, cULus
