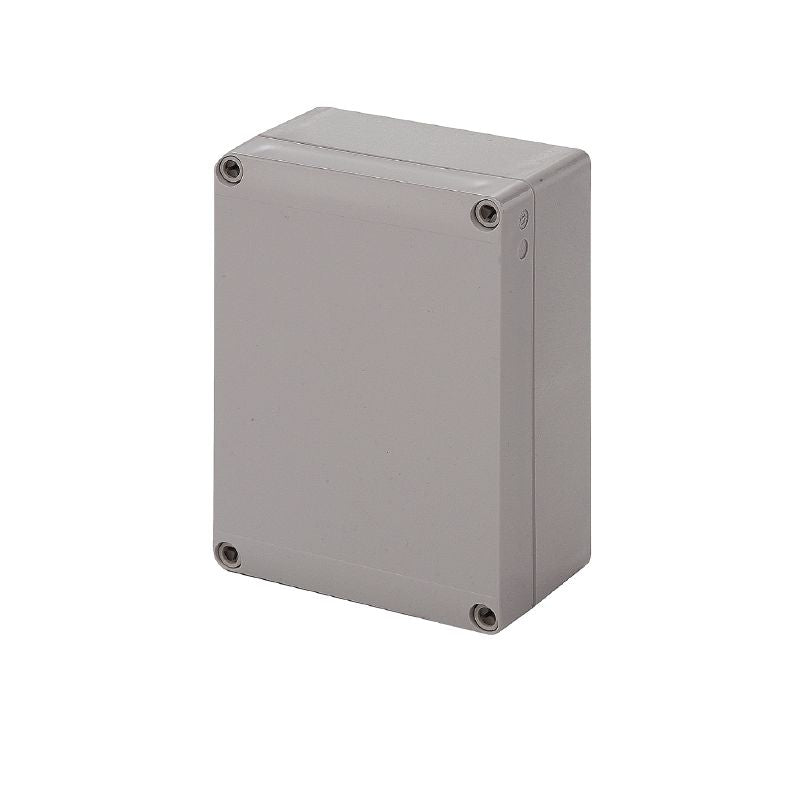

9535290000 - Versatile 125mm x 175mm Polycarbonate Enclosure, IP66 & IK08 Rated

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

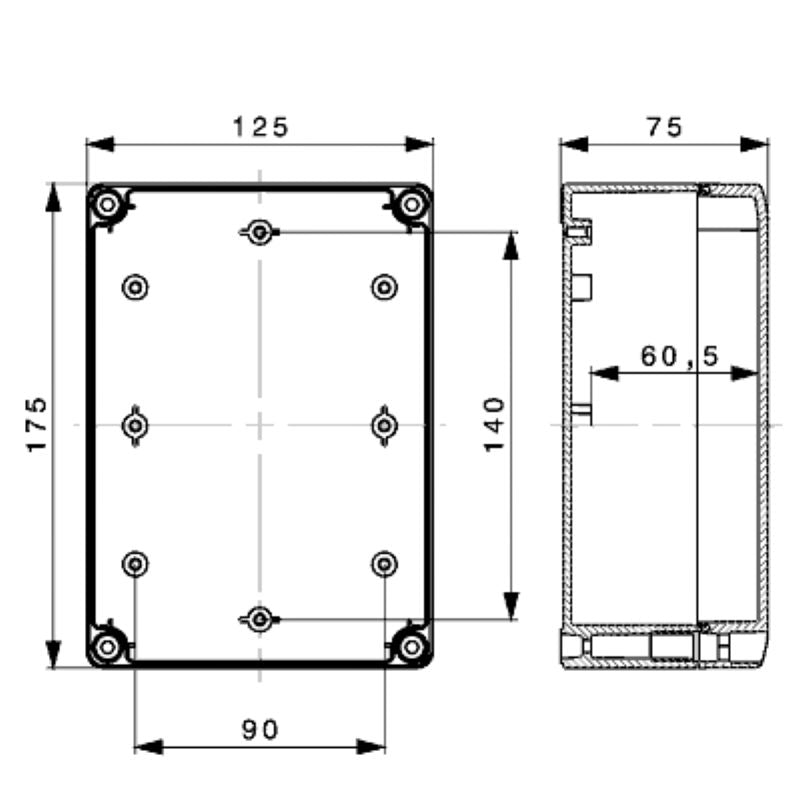

Introducing the MPC polycarbonate empty enclosure, where versatility meets functionality With dimensions of 125 mm in height, 175 mm in width, and a depth of 75 mm, this enclosure is crafted from untreated polycarbonate and comes in a light grey hue It’s engineered to accommodate a diverse range of applications while adhering to RoHS compliance, ensuring it meets environmental standards without exceptions.

This enclosure boasts impressive impact resistance with an IK08 rating and is designed to shield against dust and water, featuring both IP66 and IP67 protection ratings The practical construction allows for uncomplicated screw mounting, with an access opening measuring 1215 mm in height and 1715 mm in width, making it ideal for different mechanical installations Moreover, you can count on its reliable performance across a temperature spectrum from -50 °C to 130 °C.

Features and Benefits:

•Constructed from untreated polycarbonate.

•Impact resistance rating of IK08.

•Protection degree IP66 and IP67.

•Screw mounting with self-tapping screws.

•Easy access opening measurements.

•Building systems and technology.

•Transportation.

•Packaging industry.

•Machine construction.

Specifications:
