8000108850 - 508mm Stainless Steel Multi-Hinge Terminal Box, Empty Enclosure

8000108850 - 508mm Stainless Steel Multi-Hinge Terminal Box, Empty Enclosure

SKU: 8000108850 Download PDF

Variant:
  • 8000108850 - 508mm Stainless Steel Multi-Hinge Terminal Box, Empty Enclosure
Now $2,331.54
BEFORE   $0.00 Now $2,331.54
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

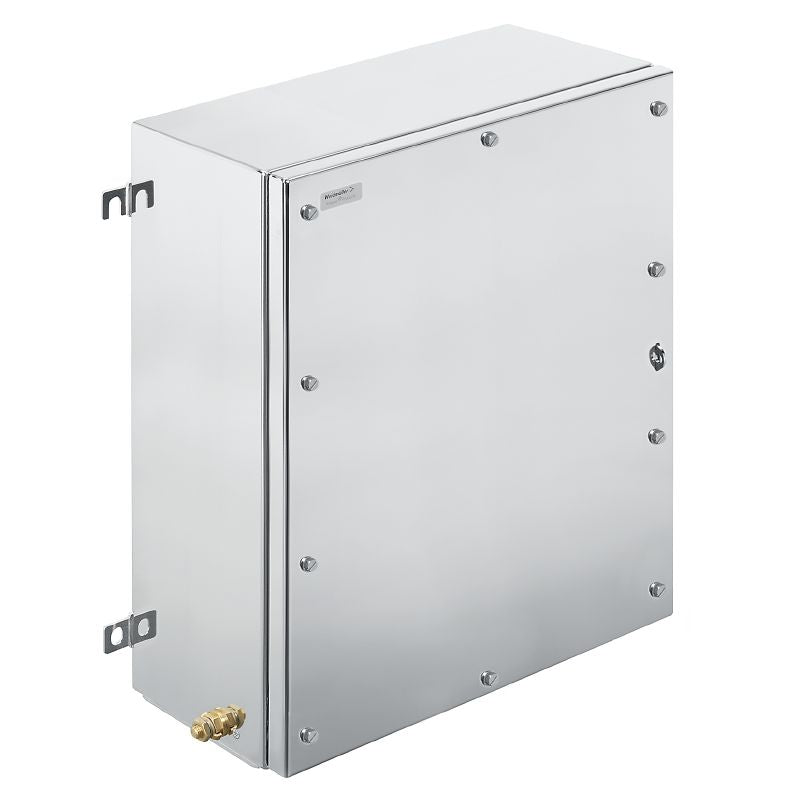

Introducing the Klippon TB MH terminal box, expertly crafted from high-grade stainless steel This empty enclosure boasts a versatile multi-hinge design and measures 508 mm in height, 406 mm in width, and 200 mm in depth Equipped with gland plates at the bottom, it's perfect for various wiring applications Constructed from stainless steel 14404 (316L) and finished with an electropolished silver appearance, this box is as durable as it is stylish.

Plus, it meets RoHS compliance standards, ensuring environmentally friendly use.

Features and Benefits:

    •Stainless steel 1.4404 (316L) construction.

    •Electropolished surface finish.

    •Compliant with RoHS and REACH regulations.

    •Impact resistance rating of 10 J.

    •IP66 and IP67 rated protection degree.

    •Operating temperature range from -60 °C to 135 °C.

    •Multi-hinge lid design with a 130° opening angle.

    •Includes four welded-on mounting feet.

Specifications:

 Dimensions {'Height': '508 mm', 'Width': '406 mm', 'Depth': '200 mm'}
 Material Thickness {'Cover': '1.5 mm', 'Enclosure': '1.5 mm', 'Flange': '3 mm'}
 Cable Glands {'Left': {'M12': 60, 'M16': 45, 'M20': 26, 'M25': 20, 'M32': 5, 'M40': 4, 'M50': 3, 'M63': 0, 'M75': 0}, 'Right': {'M12': 60, 'M16': 45, 'M20': 26, 'M25': 20, 'M32': 5, 'M40': 4, 'M50': 3, 'M63': 0, 'M75': 0}, 'Top/Bottom': {'M12': 51, 'M16': 39, 'M20': 22, 'M25': 18, 'M32': 7, 'M40': 5, 'M50': 4, 'M63': 3, 'M75': 0}}
 Protection Class Type 3, Type 4X, Type 12
 Seal Material Silicone
 Torque for Lid Screws 2.5 Nm
 Classifications {'ETIM 10.0': 'EC000261', 'ECLASS 15.0': '27-18-01-01'}
