8000108873 - Stainless Steel Klippon TB MH Enclosure, 760x620x200mm

SKU: SKU: 8000108873 Download PDF

Select a Variant:

8000108873 - Stainless Steel Klippon TB MH Enclosure, 760x620x200mm

SET THE QTY:

Now $4,415.41 Web pricing policy

~~BEFORE $0.00~~ Now $4,415.41 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

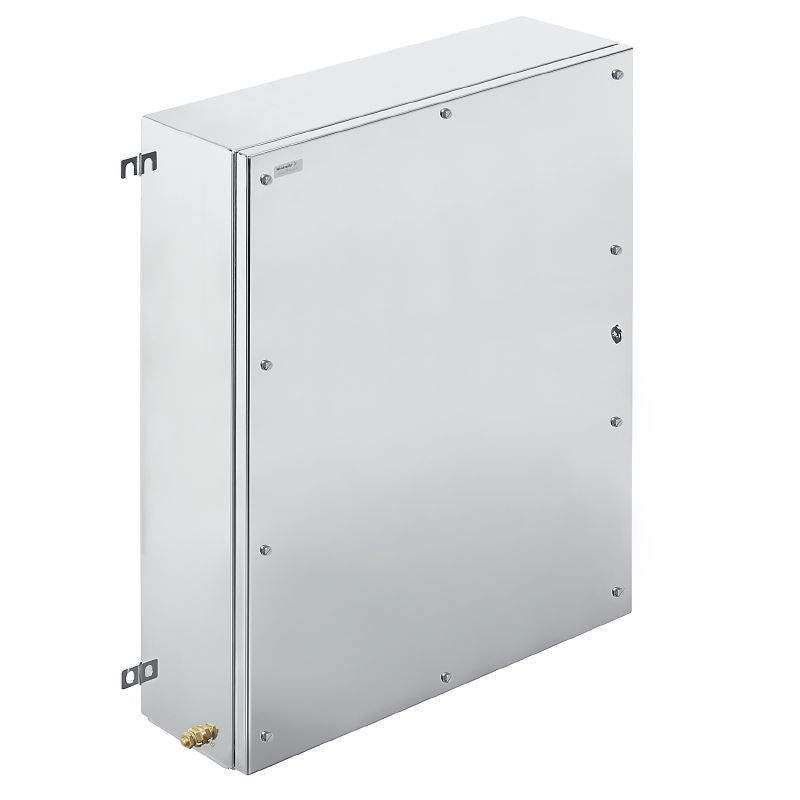

Introducing the Klippon TB MH (Terminal Box - Multi Hinge), a robust empty enclosure crafted from premium stainless steel, perfect for safeguarding a variety of applications With dimensions of 760 mm in height, 620 mm in width, and a depth of 200 mm, this enclosure is designed for versatility Constructed from electropolished stainless steel grade 14404 (316L), it boasts durability and resistance against environmental factors.

Additionally, gland plates are strategically placed on the bottom, left, and right sides to enhance its functionality This terminal box is an excellent choice for protection in demanding settings.

Features and Benefits:

•Made of stainless steel 1.4404 (316L).

•Electropolished surface for enhanced durability.

•Includes gland plates for various configurations.

•Operating temperature range of -60 °C to 135 °C.

•Compliant with RoHS and various international safety standards.

•Impact resistant with a standard of 10 J.

Specifications:

Height	760 mm
Width	620 mm
Depth	200 mm
Net weight	33,518.468 g
Material thickness of cover	1.5 mm
Material thickness of enclosure	1.5 mm
Material thickness of flange	3 mm
Protection class	IP66, IP67
Operating temperature, max	135 °C
Operating temperature, min	-60 °C
Seal material	Silicone
Torque for lid screws	2.5 Nm
Standards	DIN EN 62208, DIN EN 61373 Class 1B, and other relevant IEC and EN standards
