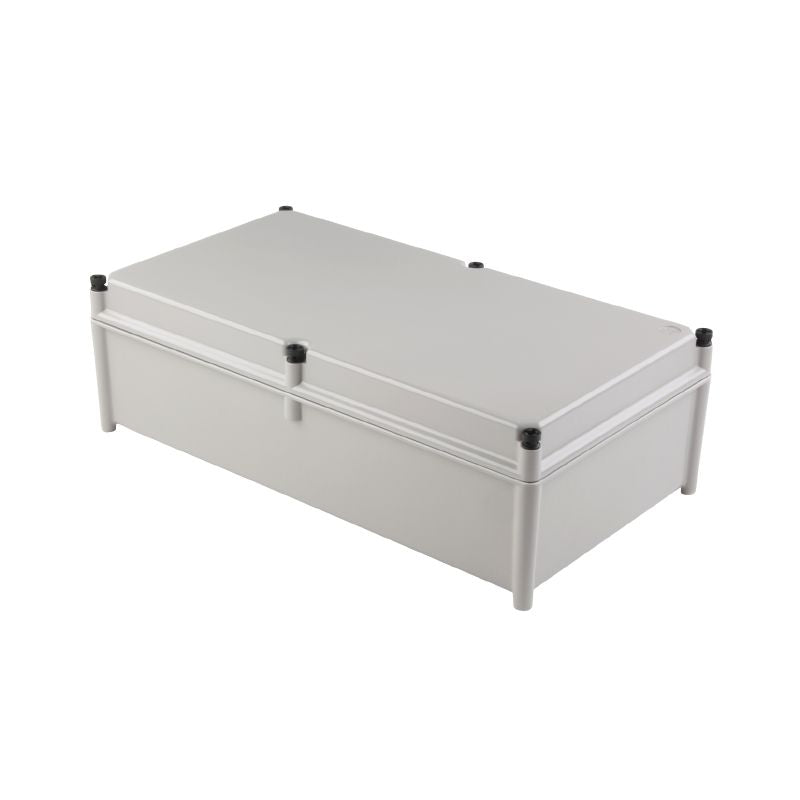

9502820000 - 603mm Light Grey Polyester Enclosure for Versatile Applications

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

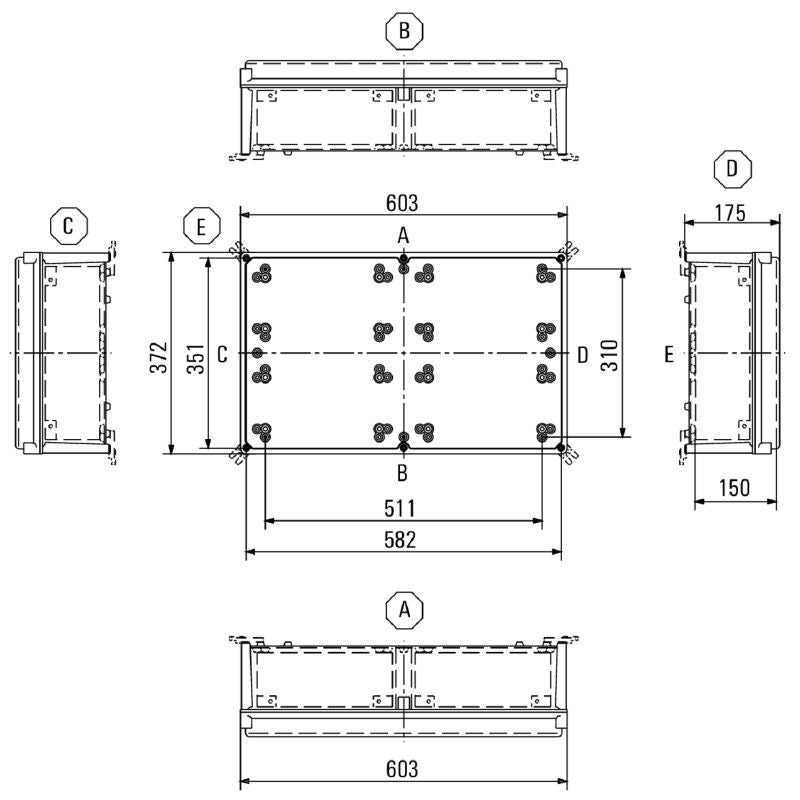

Discover the TBF empty enclosure, crafted from glass fibre-reinforced polyester in a sophisticated light grey hue With a height of 603 mm, width of 372 mm, and a depth of 175 mm, this enclosure is adaptable for a range of uses It meets RoHS compliance standards, ensuring eco-friendly design Weighing in at 5,000 g, it is built to withstand temperatures from -50 °C to 130 °C The access opening measures 578 mm in height and 347 mm in width, providing easy entry for your applications.

Features and Benefits:

•Impact resistance rated IK08 according to IEC 62208.

•Protection degree IP67.

•Screw mounting capability with provision for 4 or 6 stud bolts.

•Free from halogens.

•UL 94 flammability rated HB.

•Building systems and technology.

•Transportation.

•Packaging industry.

•Machine construction.

Specifications:
