8000109915 - Stainless Steel Terminal Box 620x620x150mm, IP66 Rated

SKU: SKU: 8000109915 Download PDF

Select a Variant:

8000109915 - Stainless Steel Terminal Box 620x620x150mm, IP66 Rated

SET THE QTY:

Now $3,028.71 Web pricing policy

~~BEFORE $0.00~~ Now $3,028.71 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

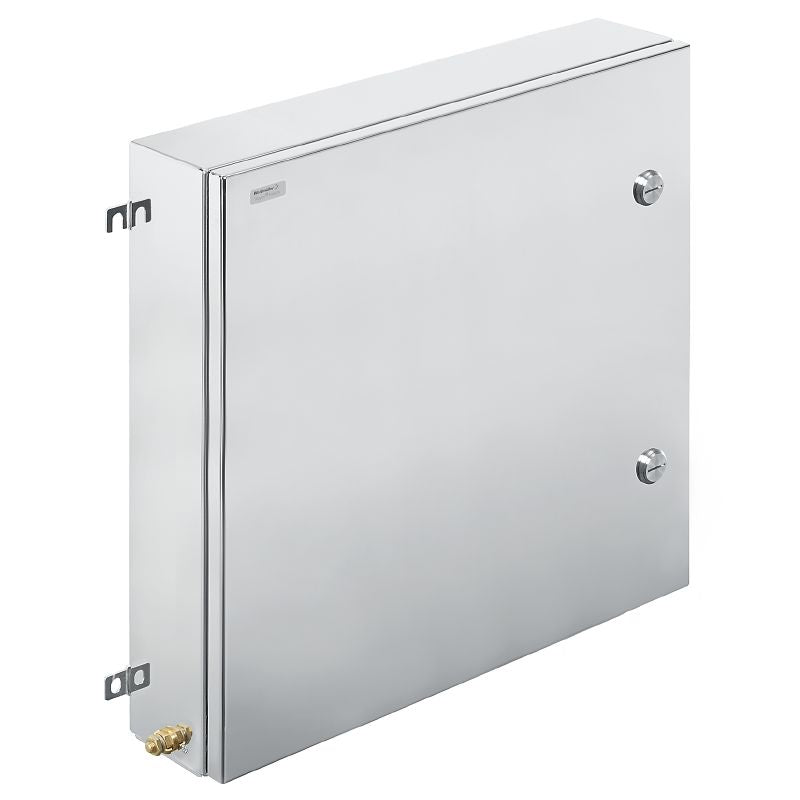

Introducing the Klippon TB QL (Terminal Box - Quarter Lock), a robust empty enclosure designed for versatility Measuring 620 mm in height, 620 mm in width, and 150 mm in depth, this enclosure is crafted from high-grade stainless steel 14404 (316L) and boasts a polished silver finish that adds an elegant touch With a weight of 23,630866 g, it meets RoHS compliance and is built to withstand harsh environments, operating effectively in temperatures ranging from -60 °C to 135 °C.

It offers IP66 protection, making it a reliable choice for demanding applications.

Features and Benefits:

•Compliant with RoHS regulations.

•Constructed from durable stainless steel material.

•Electropolished surface finish for corrosion resistance.

•Designed for explosive risk zones in various industries.

•Supports multiple cable gland configurations.

•Explosive risk zones.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:

Operating temperature, max.	135 °C
Operating temperature, min.	-60 °C
Height	620 mm
Width	620 mm
Depth	150 mm
Material thickness of enclosure	1.5 mm
Material thickness of flange	3 mm
Protection degree	IP66, IP67
Seal material	Silicone
Approval conditions	ATEX, IECEX, INMETRO, cULus
Certificate No. UL 508A	E223801
Impact resistance	10 J version standard
General standards	DIN EN 62208, DIN EN 61373 Class 1B, EN 60079-0
