9535230000 - Polycarbonate Enclosure 125x125x75mm, IP66 & IP67 Protection

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the MPC empty enclosure, an ideal solution for various sectors such as building systems, technology, transportation, packaging, and machinery This versatile enclosure measures 125 mm in height, 125 mm in width, and 75 mm in depth, crafted from untreated light grey polycarbonate It meets RoHS standards with no SVHC surpassing 01 wt% Equipped with cable glands suitable for M12, M16, and M20 sizes, it offers flexible installation options and can be securely fastened using self-tapping screws.

With an IK08 impact resistance rating and an IP66 and IP67 protection rating, this enclosure guarantees durability and reliability in demanding environments.

Features and Benefits:

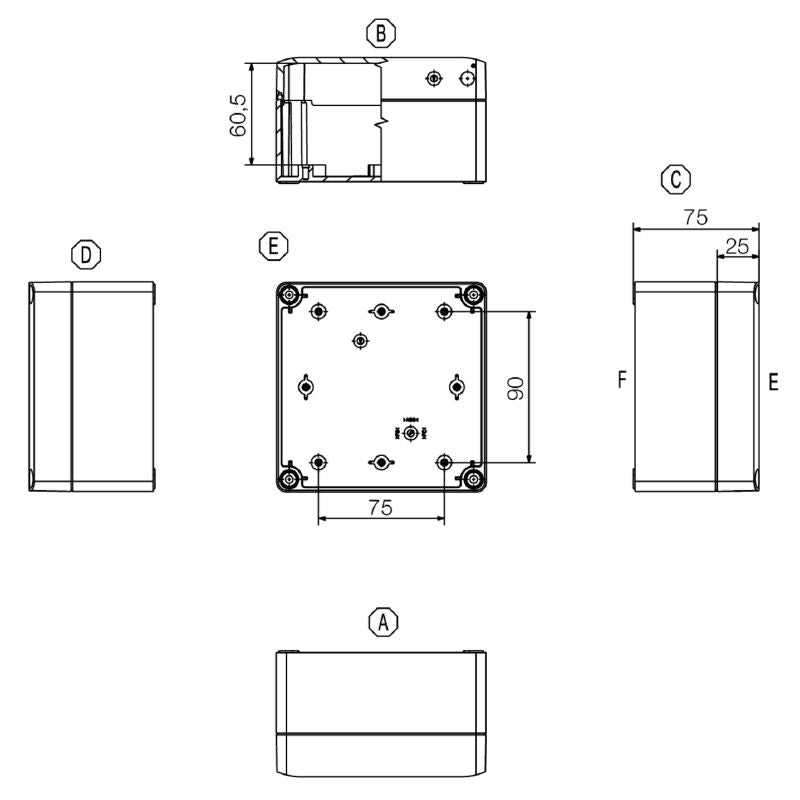

•Access opening dimensions: height 121.5 mm, width 121.5 mm.

•Operating temperature range: -50 °C to 130 °C.

•Installation through screw mounting with integral fixing.

•Four polyamide crosshead screws for lid attachment.

•Material thickness of 3.5 mm.

•Self-tapping screws for secure installation.

•Building systems and technology.

•Transportation.

•Packaging industry.

•Machine construction.

Specifications:
