8000109910 - 620mm Stainless Steel Terminal Box with Quarter Lock Design

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

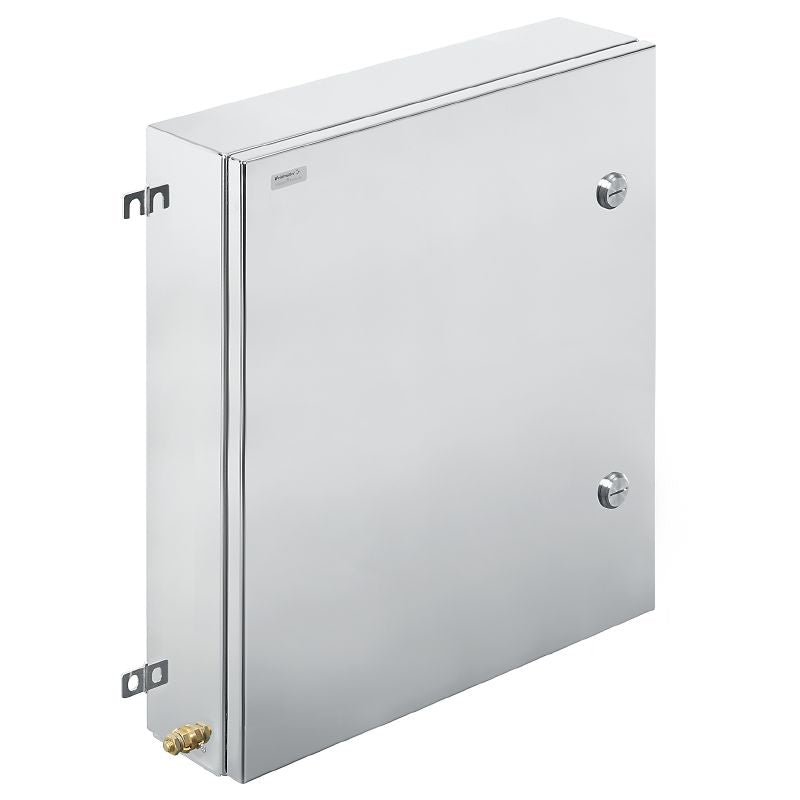

Introducing the KTB QL 625015 S4E3 terminal box, a robust solution crafted from electropolished stainless steel 14404 (316L) This empty enclosure features a secure quarter lock design and offers generous dimensions of 620 mm in height, 508 mm in width, and 150 mm in depth Built to endure operating temperatures from -60 °C to 135 °C, it guarantees IP66 protection for applications under 105 °C, making it an excellent choice for demanding environments.

Features and Benefits:

•Constructed from electropolished stainless steel 1.4404 (316L).

•IP66 and IP67 protection classes.

•Capable of being mounted using 11 mm holes with four welded-on feet.

•Equipped with hinges for easy lid access.

•Suitable for explosive risk zones.

•Applicable in the process industry.

•Used in oil and gas industry settings.

•Designed for chemical industry environments.

•Applicable in offshore and onshore installations.
